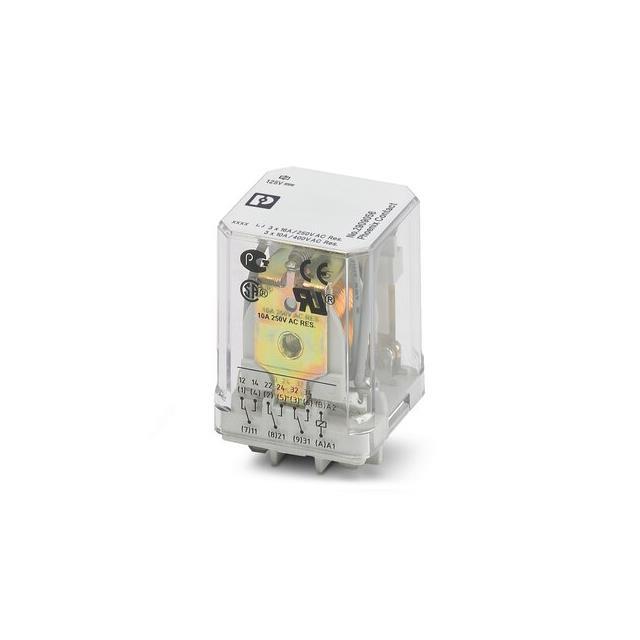

Phoenix Contact REL-PR3-125DC/3X21 3PDT Non-Latching Relay, 125V dc Coil, 10mA

2909056 Phoenix Contact REL-PR3-125DC/3X21 3PDT Non-Latching Relay, 125V dc Coil, 10mA
2909056
Phoenix Contact

Product Information

Maximum Switching Voltage DC:
250V dc
Maximum Operating Temperature:
+70°C
Coil Power:
1.34W
Series:
REL-PR3-125DC/3X21
Latching:
No
Coil Voltage:
125V dc
Length:
38.6mm
Height:
36.1mm
Minimum Operating Temperature:
-40°C
Depth:
45.5mm
Maximum Switching Voltage AC:
440V
Maximum Switching Power DC:
384 W
Maximum Switching Power AC:
4 kVA
Contact Configuration:
3PDT
Number of Poles:
3
Switching Current:
16A
Contact Material:
Silver Alloy
HTSUS:
8536.49.0075
Coil Voltage:
125VDC
Termination Style:
Plug In
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
11.364 kOhms
Coil Current:
11 mA
Coil Type:
Non Latching
Switching Voltage:
440VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
106.25 VDC
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
3PDT (3 Form C)
Operate Time:
20 ms
Must Release Voltage:
-
standardLeadTime:
8 Weeks
Contact Rating (Current):
16 A
Features:
-
Mounting Type:
Socketable
Series:
REL-PR3
Release Time:
15 ms
Coil Insulation:
-
ECCN:
EAR99
Base Product Number:
29090
Contact Material:
Silver Nickel (AgNi)
RoHs Compliant
Checking for live stock

This is REL-PR3-125DC/3X21 3PDT Non-Latching Relay 125V dc Coil 10mA manufactured by Phoenix Contact. The manufacturer part number is 2909056. While it carries 250v dc of maximum DC switching voltage. It has a maximum operating temperature of +70°c. Robust coil power of 1.34w. The product rel-pr3-125dc/3x21, is a highly preferred choice for users. Latching Options - no. The coil voltage of the product is 125v dc. Its accurate length is 38.6mm. In addition, the height is 36.1mm. Whereas, the minimum operating temperature of the product is -40°c. The product comes in 45.5mm depth. It has a maximum AC switching voltage of 440v. It bears a maximum 384 w of DC switching power. It also features an AC switching power of 4 kva. The contact is equipped with 3pdt configuration. It has equipped with 3 poles. It is integrated with 16a switching current. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.49.0075. The coil voltage of the product is 125vdc. Moreover, it has plug in terminal style. The product has -40°c ~ 70°c operating temperature range. It holds up to 11.364 kohms coil resistance. It has a coil current of 11 ma. The coil is a non latching type. The product's switching voltage is 440vac, 250vdc - max. On the other hand, 106.25 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in bulk package . It also has a 3pdt (3 form c) contact form. The operating time of the product is 20 ms. It has a long 8 weeks standard lead time. It has a contact current rating of 16 a. The product is available in socketable configuration. The product rel-pr3, is a highly preferred choice for users. While 15 ms is its release time. The product is designated with the ear99 code number. Moreover, it corresponds to 29090, a base product number of the product. The product is made from sturdy silver nickel (agni) materials.

pdf icon
Datasheet 2909056(Technical Reference)
