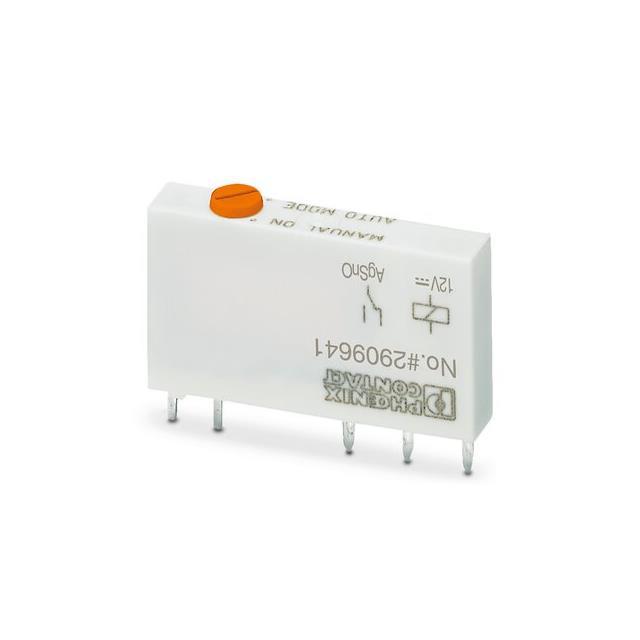

REL-MR- 12DC/21/MS

2909641 REL-MR- 12DC/21/MS
2909641
Phoenix Contact

Product Information

Maximum Switching Voltage DC:
250V dc
Maximum Operating Temperature:
+85°C
Dimensions:
28 x 5 x16mm
Mounting Type:
PCB Mount
Series:
REL-MR- 12DC/21/MS
Latching:
No
Coil Voltage:
12V dc
Length:
16mm
Height:
28mm
Depth:
5mm
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1.5 kVA
Contact Configuration:
SPDT
Number of Poles:
1
Terminal Type:
PCB Pin
Contact Material:
Silver Alloy
HTSUS:
8536.41.0020
Coil Voltage:
12VDC
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 85°C
Coil Resistance:
848 Ohms
Coil Current:
14 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Operate Time:
5 ms
Must Release Voltage:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
6 A
Features:
-
Mounting Type:
Through Hole
Series:
REL-MR
Release Time:
2.5 ms
Coil Insulation:
-
ECCN:
EAR99
Base Product Number:
29096
Contact Material:
Silver Tin Oxide (AgSnO)
RoHs Compliant
Checking for live stock

This is REL-MR- 12DC/21/MS manufactured by Phoenix Contact. The manufacturer part number is 2909641. While it carries 250v dc of maximum DC switching voltage. It has a maximum operating temperature of +85°c. The given dimensions of the product include 28 x 5 x16mm. The product is available in pcb mount configuration. The product rel-mr- 12dc/21/ms, is a highly preferred choice for users. Latching Options - no. The coil voltage of the product is 12v dc. Its accurate length is 16mm. In addition, the height is 28mm. The product comes in 5mm depth. It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 1.5 kva. The contact is equipped with spdt configuration. It has equipped with 1 poles. The terminal is a pcb pin type. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.41.0020. The coil voltage of the product is 12vdc. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. It holds up to 848 ohms coil resistance. It has a coil current of 14 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. The operating time of the product is 5 ms. It has a long 5 weeks standard lead time. It has a contact current rating of 6 a. The product is available in through hole configuration. The product rel-mr, is a highly preferred choice for users. While 2.5 ms is its release time. The product is designated with the ear99 code number. Moreover, it corresponds to 29096, a base product number of the product. The product is made from sturdy silver tin oxide (agsno) materials.
