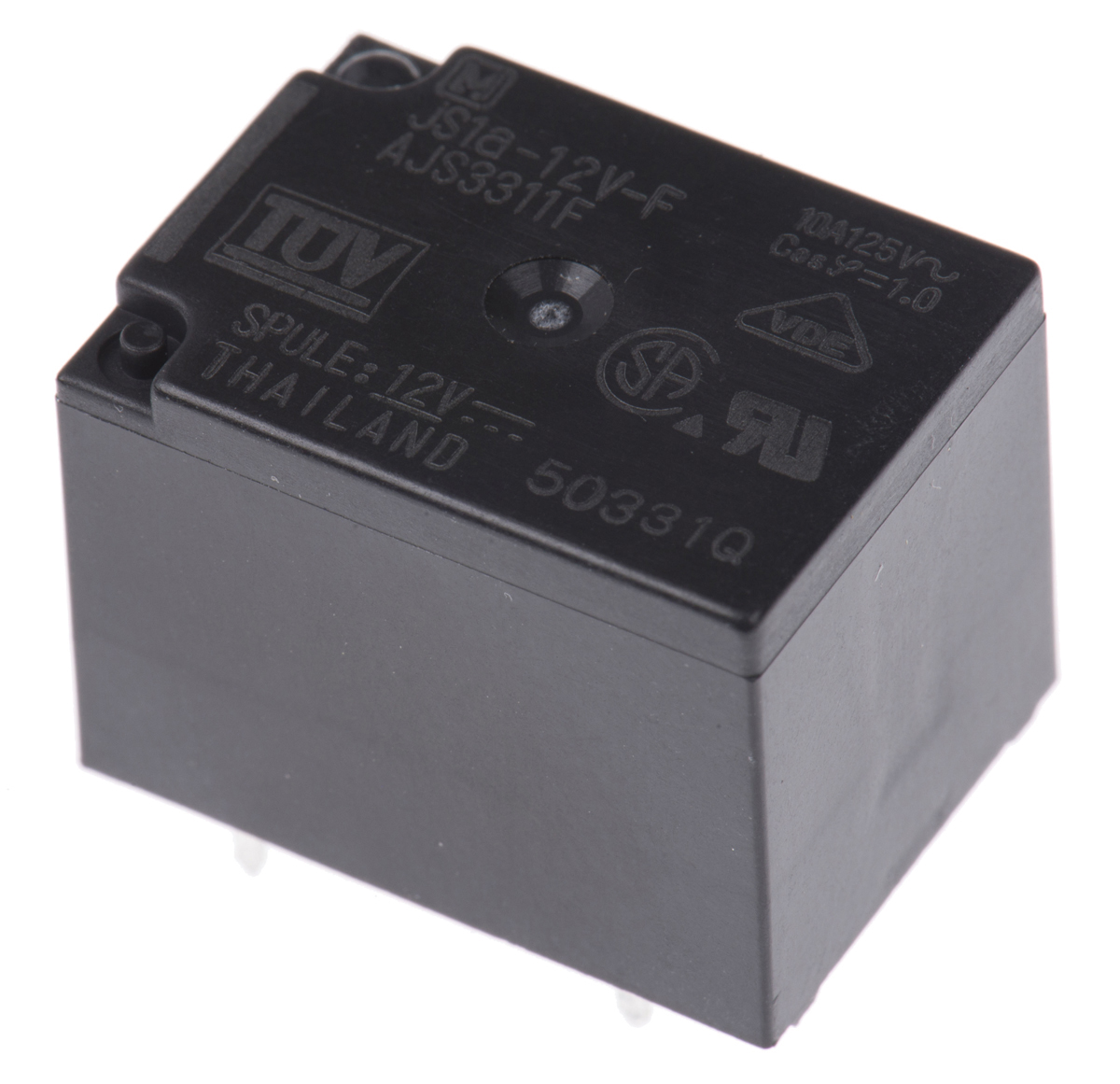

Panasonic SPNO Non-Latching Relay PCB Mount, 12V dc Coil, 5 A

JS1A-12V-F Panasonic SPNO Non-Latching Relay PCB Mount, 12V dc Coil, 5 A
JS1A-12V-F
Panasonic

Product Information

Life:
50000 Operations
Maximum Switching Voltage DC:
100V dc
Minimum Operating Temperature:
-40°C
Mounting Type:
PCB Mount
Coil Power:
360mW
Maximum Operating Temperature:
+70°C
Switching Current:
5A
Coil Voltage:
12V dc
Depth:
16mm
Height:
16mm
Application:
Domestic Appliances
Length:
22mm
Maximum Switching Voltage AC:
250V
Maximum Switching Power DC:
150 W
Maximum Switching Power AC:
2.5 kVA
Contact Configuration:
SPST
Isolation Coil To Contact:
1.5kV rms
Contact Material:
Silver Alloy
Number of Poles:
1
Coil Resistance:
400 Ω
RoHs Compliant
Checking for live stock

This is SPNO Non-Latching Relay PCB Mount 12V dc Coil 5 A manufactured by Panasonic. The manufacturer part number is JS1A-12V-F. It is capable of doing 50000 operations in a lifetime . While it carries 100v dc of maximum DC switching voltage. Whereas, the minimum operating temperature of the product is -40°c. The product is available in pcb mount configuration. Robust coil power of 360mw. It has a maximum operating temperature of +70°c. It is integrated with 5a switching current. The coil voltage of the product is 12v dc. The product comes in 16mm depth. In addition, the height is 16mm. Applications Information involves domestic appliances. Its accurate length is 22mm. It has a maximum AC switching voltage of 250v. It bears a maximum 150 w of DC switching power. It also features an AC switching power of 2.5 kva. The contact is equipped with spst configuration. The product has 1.5kv rms isolation coil to contact. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. It holds up to 400 ω coil resistance.

pdf icon
JS Relays Data Sheet(Technical Reference)
