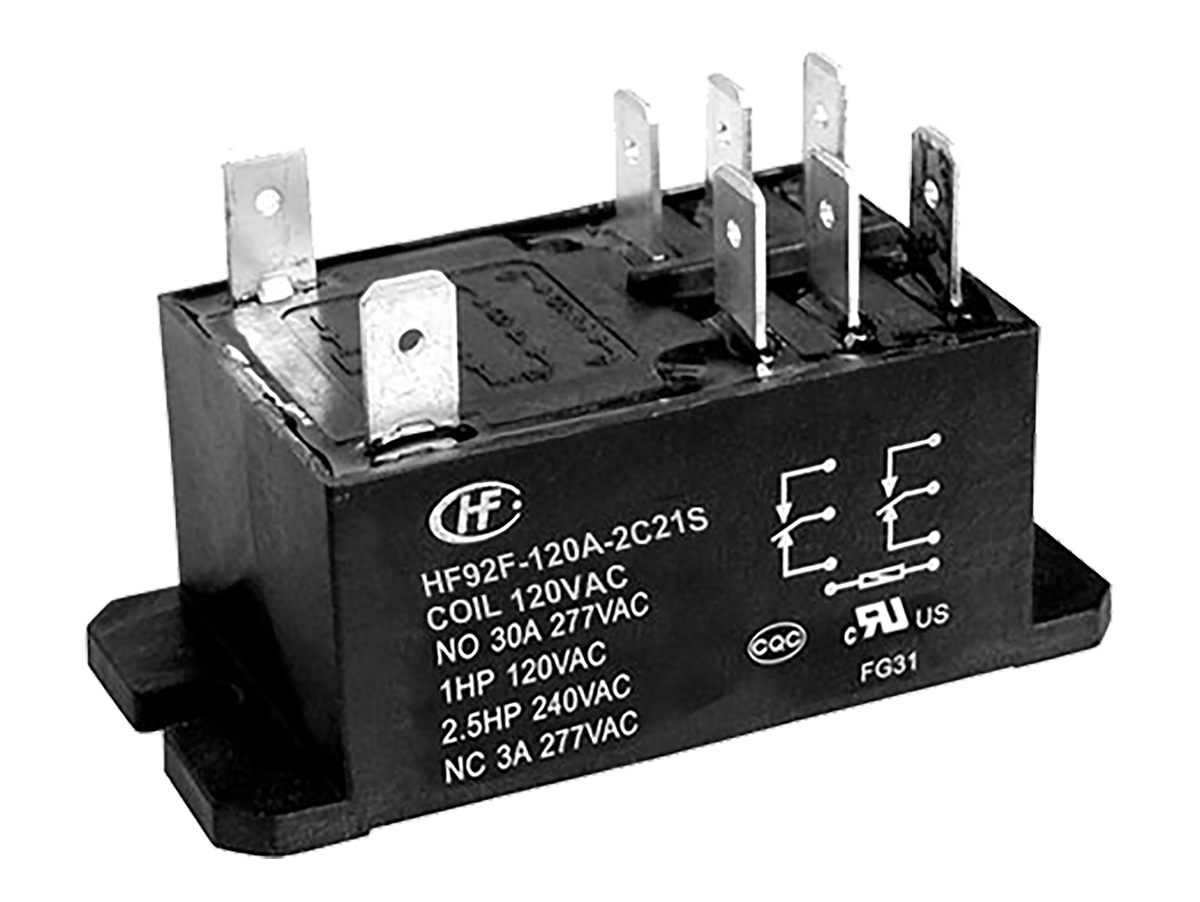

This is DPDT Non-Latching Relay Flange Mount 120V ac Coil 30 A Non-Latching Relay manufactured by Hongfa Europe GMBH. The manufacturer part number is HF92F-120A-2C21S. It is capable of doing 100000 operations in a lifetime . The product complies with all safety standards, such as cqc, culus, vde. The product is available in flange mount configuration. Robust coil power of 4w. It has a maximum operating temperature of +65°c. Latching Options - no. The coil voltage of the product is 120v ac. The product comes in 33.7mm depth. In addition, the height is 26.4mm. It is integrated with 30a switching current. Its accurate length is 68.6mm. It has a maximum AC switching voltage of 277v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 8.31 kva. The contact is equipped with dpdt configuration. The product has 4kv ac isolation coil to contact. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. The terminal is a quick connect type. It holds up to 950ω coil resistance.
For more information please check the datasheets.
