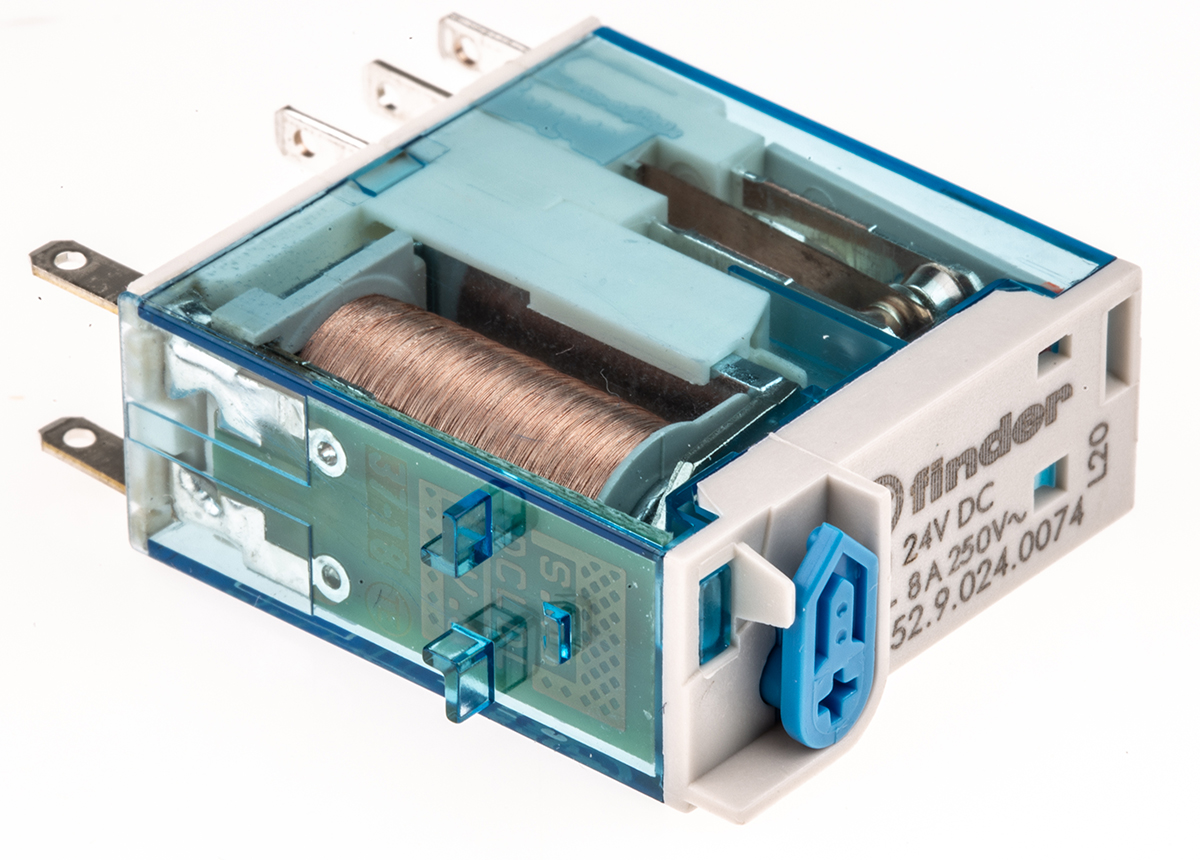

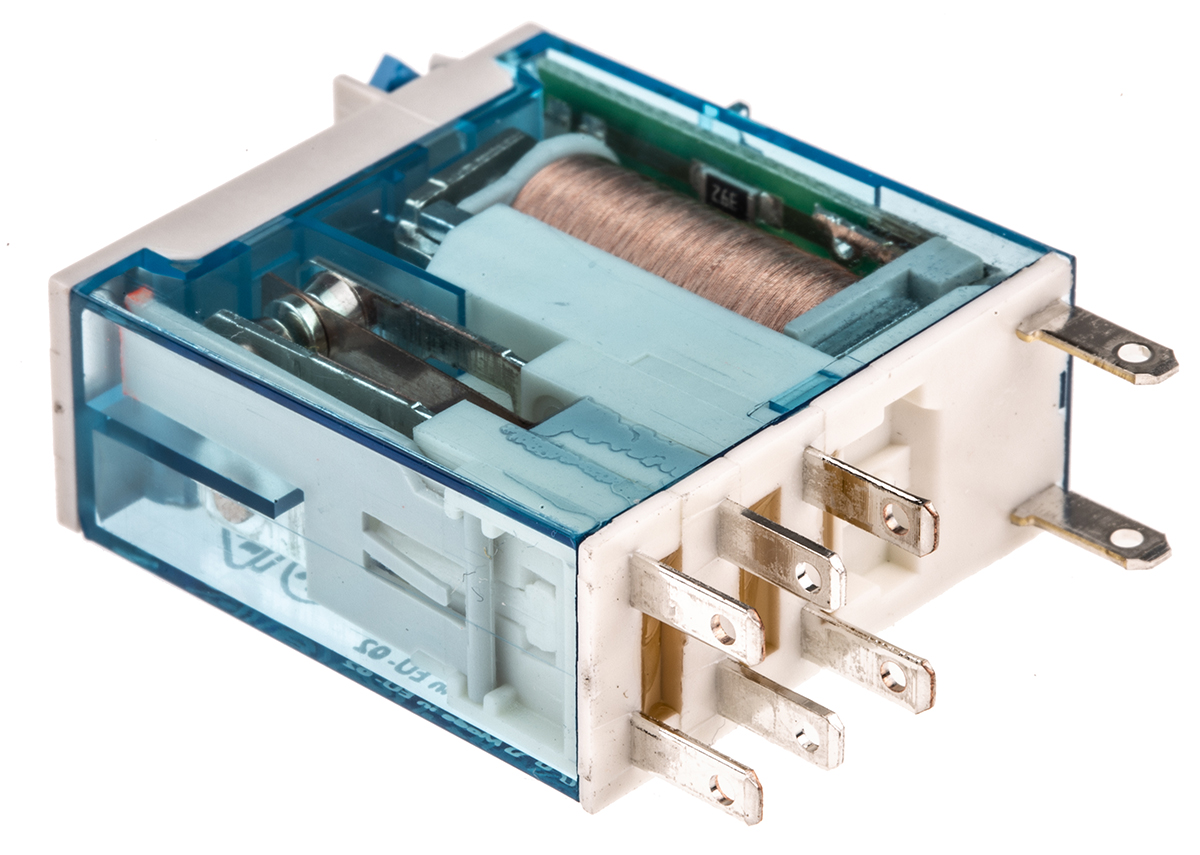

This is DPDT Non-Latching Relay Plug In 24V dc Coil 8 A manufactured by Finder. The manufacturer part number is 46.52.9.024.0074. The coil voltage of the product is 24v dc. The terminal is a pcb pin type. It holds up to 1200ω coil resistance. It is capable of doing 10000000 (mechanical) cycles in a lifetime . The product complies with all safety standards, such as ce, eac. Robust coil power of 500mw. The product has 6kv isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 8a switching current. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 12.4mm depth. The product is available in plug in configuration. The product 46 series, is a highly preferred choice for users. Its accurate length is 29mm. In addition, the height is 32.8mm. It has a maximum AC switching voltage of 440v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 2 kva. It has equipped with 2 poles. The product is made from sturdy silver alloy materials.
For more information please check the datasheets.
