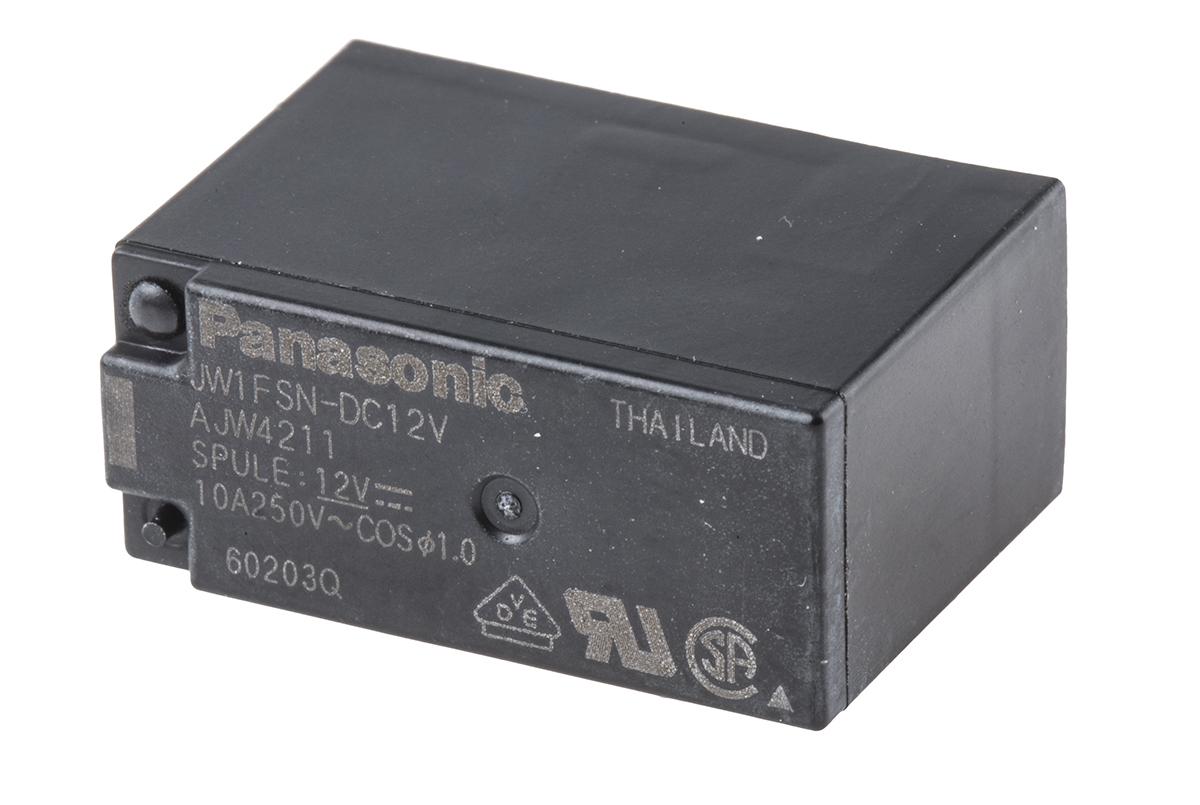

Panasonic SPDT Non-Latching Relay PCB Mount, 12V dc Coil

JW1FSN-DC12V Panasonic SPDT Non-Latching Relay PCB Mount, 12V dc Coil
JW1FSN-DC12V
Panasonic

Product Information

Minimum Operating Temperature:
-40°C
Mounting Type:
PCB Mount
Maximum Operating Temperature:
+60°C
Latching:
No
Coil Voltage:
12V dc
Length:
28.6mm
Height:
20mm
Application:
Power
Depth:
12.8mm
Maximum Switching Power DC:
300 W
Contact Configuration:
SPDT
Maximum Switching Power AC:
2.5 kVA
Contact Material:
Silver Alloy
Number of Poles:
1
Terminal Type:
Through Hole
Coil Resistance:
270Ω
RoHs Compliant
Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 12V dc Coil manufactured by Panasonic. The manufacturer part number is JW1FSN-DC12V. Whereas, the minimum operating temperature of the product is -40°c. The product is available in pcb mount configuration. It has a maximum operating temperature of +60°c. Latching Options - no. The coil voltage of the product is 12v dc. Its accurate length is 28.6mm. In addition, the height is 20mm. Applications Information involves power. The product comes in 12.8mm depth. It bears a maximum 300 w of DC switching power. The contact is equipped with spdt configuration. It also features an AC switching power of 2.5 kva. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. The terminal is a through hole type. It holds up to 270ω coil resistance.

pdf icon
JW Relays Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search JW1FSN-DC12V on website for other similar products.
We accept all major payment methods for all products including ET16752704. Please check your shopping cart at the time of order.
You can order Panasonic brand products with JW1FSN-DC12V directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic SPDT Non-Latching Relay PCB Mount, 12V dc Coil. You can also check on our website or by contacting our customer support team for further order details on Panasonic SPDT Non-Latching Relay PCB Mount, 12V dc Coil.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16752704 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16752704.
Yes. We ship JW1FSN-DC12V Internationally to many countries around the world.
