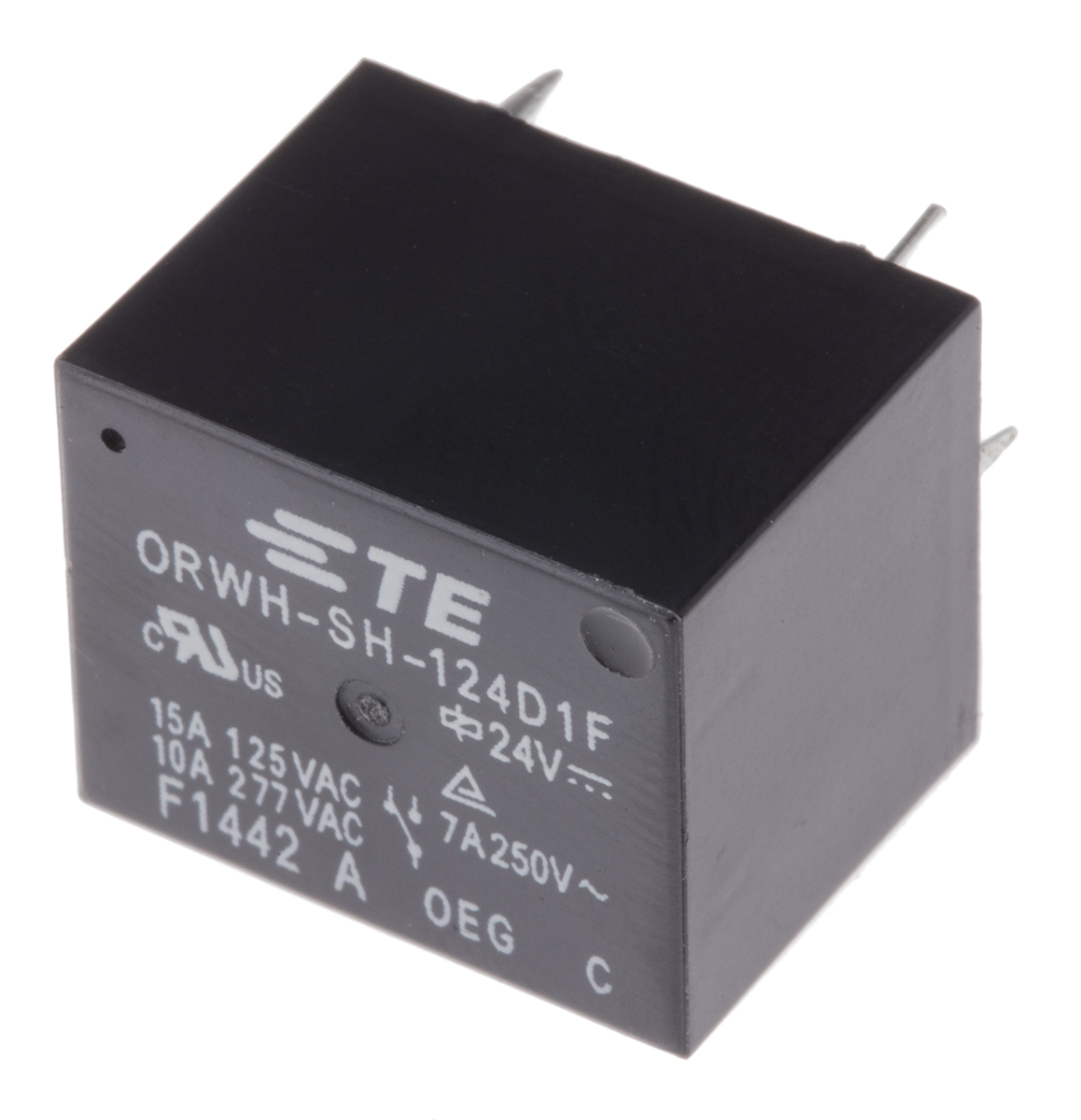

TE Connectivity SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 10 A

1-1721150-5 TE Connectivity SPDT Non-Latching Relay PCB Mount, 24V dc Coil, 10 A
1-1721150-5
TE Connectivity

Product Information

Life:
10 x 10^6 (Mechanical) Operations
Maximum Switching Voltage DC:
28V dc
Mounting Type:
PCB Mount
Coil Power:
360mW
Maximum Operating Temperature:
+70°C
Latching:
No
Coil Voltage:
24V dc
Depth:
15.5mm
Height:
15.8mm
Switching Current:
10A
Application:
General Purpose
Length:
19mm
Maximum Switching Voltage AC:
277V
Minimum Operating Temperature:
-30°C
Contact Configuration:
SPDT
Isolation Coil To Contact:
1.5kVrms
Contact Material:
Silver Alloy
Number of Poles:
1
Terminal Type:
PCB Pin
Coil Resistance:
1600Ω
Moisture Sensitivity Level (MSL):
Vendor Undefined
HTSUS:
8536.41.0050
Package:
Box
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 24V dc Coil 10 A manufactured by TE Connectivity. The manufacturer part number is 1-1721150-5. It is capable of doing 10 x 10^6 (mechanical) operations in a lifetime . While it carries 28v dc of maximum DC switching voltage. The product is available in pcb mount configuration. Robust coil power of 360mw. It has a maximum operating temperature of +70°c. Latching Options - no. The coil voltage of the product is 24v dc. The product comes in 15.5mm depth. In addition, the height is 15.8mm. It is integrated with 10a switching current. Applications Information involves general purpose. Its accurate length is 19mm. It has a maximum AC switching voltage of 277v. Whereas, the minimum operating temperature of the product is -30°c. The contact is equipped with spdt configuration. The product has 1.5kvrms isolation coil to contact. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. The terminal is a pcb pin type. It holds up to 1600ω coil resistance. Its typical moisture sensitivity level is vendor undefined. It is assigned with possible HTSUS value of 8536.41.0050. It is shipped in box package . The product is rohs non-compliant. In addition, it is reach info available upon request. The product is designated with the ear99 code number.

pdf icon
Miniature PCB Relay ORWH Data Sheet(Technical Reference)
pdf icon
Datasheet(Datasheets)
