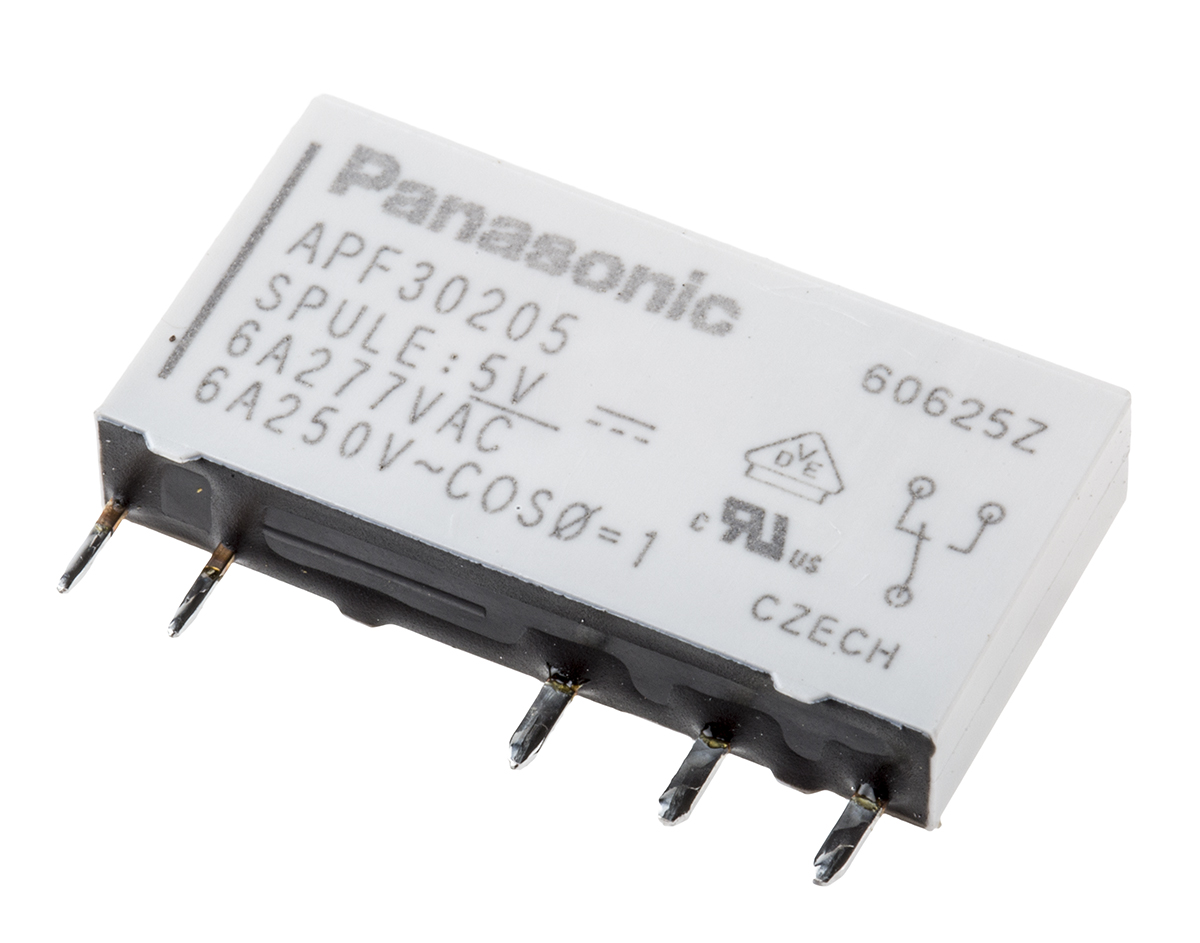

Panasonic SPDT PCB Mount Non-Latching Relay, 5V dc Coil

APF30205 Panasonic SPDT PCB Mount Non-Latching Relay, 5V dc Coil
Panasonic

Product Information

Life:
50000 (Electrical) cycles, 5000000 (Mechanical) cycles
Mounting Type:
PCB Mount
Coil Power:
170mW
Maximum Operating Temperature:
+85°C
Latching:
No
Coil Voltage:
5V dc
Depth:
5mm
Height:
15mm
Application:
Power
Length:
28mm
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1.5 kVA
Contact Configuration:
SPDT
Isolation Coil To Contact:
4kVrms
Contact Material:
Silver Alloy
Number of Poles:
1
Switching Current:
6A
Coil Resistance:
147Ω
RoHs Compliant
Checking for live stock

This is SPDT PCB Mount Non-Latching Relay 5V dc Coil manufactured by Panasonic. The manufacturer part number is APF30205. It is capable of doing 50000 (electrical) cycles, 5000000 (mechanical) cycles in a lifetime . The product is available in pcb mount configuration. Robust coil power of 170mw. It has a maximum operating temperature of +85°c. Latching Options - no. The coil voltage of the product is 5v dc. The product comes in 5mm depth. In addition, the height is 15mm. Applications Information involves power. Its accurate length is 28mm. It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 1.5 kva. The contact is equipped with spdt configuration. The product has 4kvrms isolation coil to contact. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. It is integrated with 6a switching current. It holds up to 147ω coil resistance.

pdf icon
PF RELAYS (APF) Data Sheet(Technical Reference)
