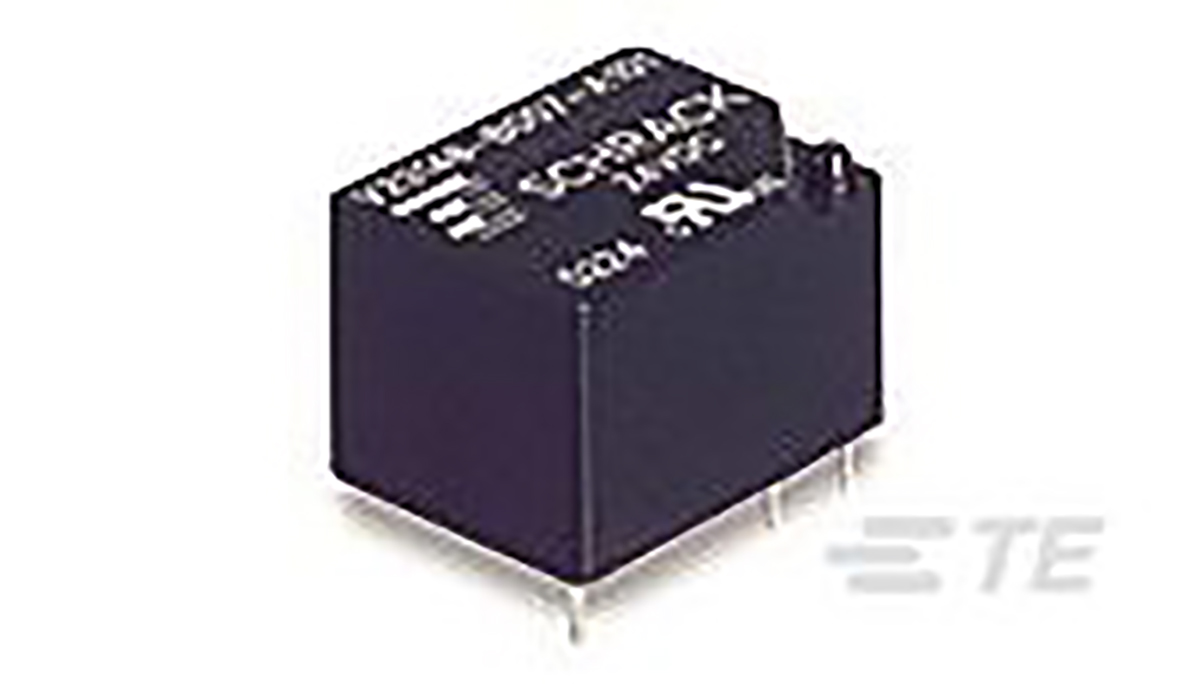

SPDT PCB Mount Latching Relay, 12V dc For Use In Power Applications

1393204-7 SPDT PCB Mount Latching Relay, 12V dc For Use In Power Applications
TE Connectivity

Product Information

Dimensions:
21.2 x 16.2 x 15.8mm
Coil Voltage:
12V dc
Application:
Battery Powered Equipment, Heating Control, Installation
Terminal Type:
PCB Pin
Coil Resistance:
320Ω
Life:
20 x 10^6 (Mechanical) cycles
Coil Power:
450mW
Isolation Coil To Contact:
2kVrms
Maximum Operating Temperature:
+70°C
Switching Current:
7A
Latching:
Yes
Contact Configuration:
SPDT
Depth:
16.2mm
Mounting Type:
PCB Mount
Series:
U/UB
Length:
21.2mm
Height:
15.8mm
Maximum Switching Voltage AC:
400V
Minimum Operating Temperature:
-25°C
Maximum Switching Power AC:
450 mW
Number of Poles:
1
Moisture Sensitivity Level (MSL):
Vendor Undefined
Package:
Tube
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is SPDT PCB Mount Latching Relay 12V dc For Use In Power Applications manufactured by TE Connectivity. The manufacturer part number is 1393204-7. The given dimensions of the product include 21.2 x 16.2 x 15.8mm. The coil voltage of the product is 12v dc. Applications Information involves battery powered equipment, heating control, installation. The terminal is a pcb pin type. It holds up to 320ω coil resistance. It is capable of doing 20 x 10^6 (mechanical) cycles in a lifetime . Robust coil power of 450mw. The product has 2kvrms isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 7a switching current. Latching Options - yes. The contact is equipped with spdt configuration. The product comes in 16.2mm depth. The product is available in pcb mount configuration. The product u/ub, is a highly preferred choice for users. Its accurate length is 21.2mm. In addition, the height is 15.8mm. It has a maximum AC switching voltage of 400v. Whereas, the minimum operating temperature of the product is -25°c. It also features an AC switching power of 450 mw. It has equipped with 1 poles. Its typical moisture sensitivity level is vendor undefined. It is shipped in tube package . The product is rohs non-compliant. In addition, it is reach info available upon request. The product is designated with the ear99 code number.
