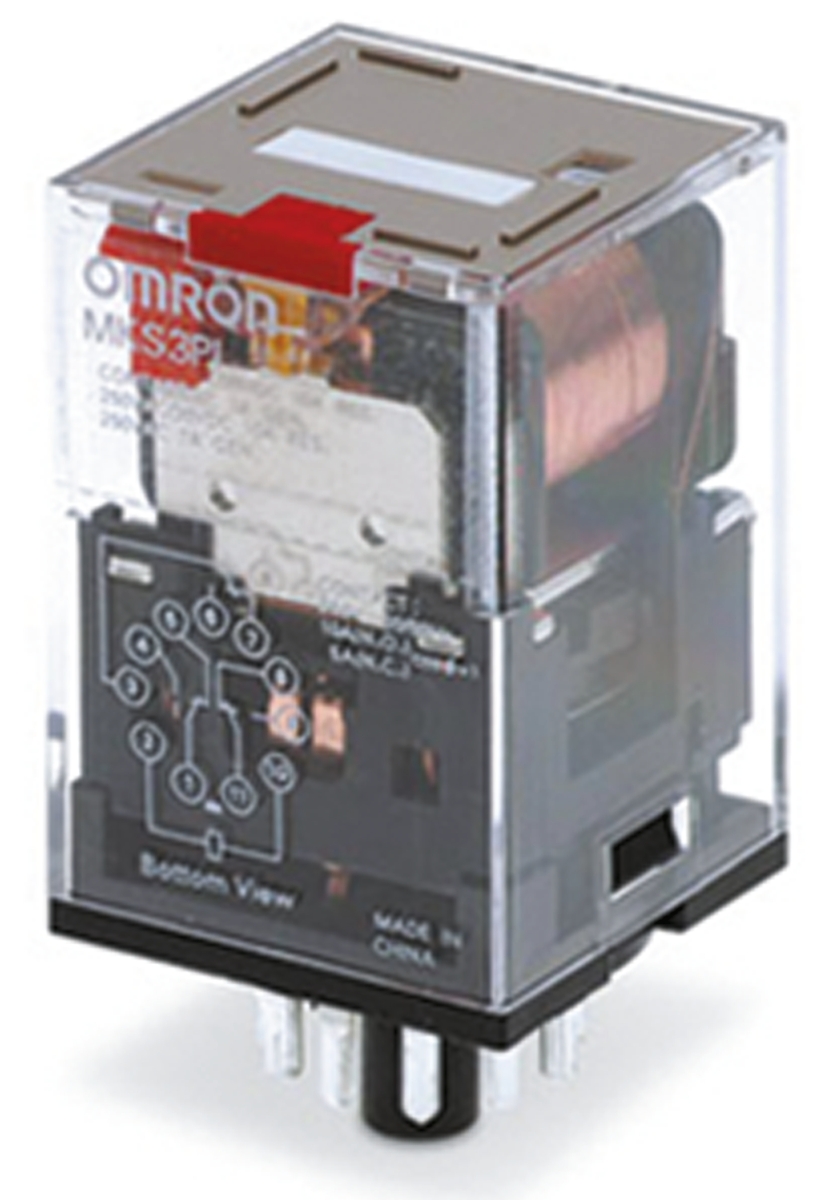

Omron 3PDT Non-Latching Relay Plug In, 24V dc Coil, 10 A

MKS3PN1-DC24 Omron 3PDT Non-Latching Relay Plug In, 24V dc Coil, 10 A
Omron

Product Information

Coil Voltage:
24V dc
Application:
General Purpose
Terminal Type:
Plug In
Coil Resistance:
430Ω
Life:
100000 (Electrical) Operations, 5000000 (Mechanical) Operations
Coil Power:
1.4W
Maximum Switching Voltage DC:
250V dc
Maximum Switching Power DC:
300 W
Isolation Coil To Contact:
2.5kV ac
Maximum Operating Temperature:
+60°C
Switching Current:
10A
Latching:
No
Contact Configuration:
3PDT
Depth:
53.3mm
Mounting Type:
Plug In
Series:
MKS
Length:
34.5mm
Height:
34.5mm
Maximum Switching Voltage AC:
250V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
2.5 kVA
Number of Poles:
3
Contact Material:
Silver Alloy
RoHs Compliant
Checking for live stock

This is 3PDT Non-Latching Relay Plug In 24V dc Coil 10 A manufactured by Omron. The manufacturer part number is MKS3PN1 DC24. The coil voltage of the product is 24v dc. Applications Information involves general purpose. The terminal is a plug in type. It holds up to 430ω coil resistance. It is capable of doing 100000 (electrical) operations, 5000000 (mechanical) operations in a lifetime . Robust coil power of 1.4w. While it carries 250v dc of maximum DC switching voltage. It bears a maximum 300 w of DC switching power. The product has 2.5kv ac isolation coil to contact. It has a maximum operating temperature of +60°c. It is integrated with 10a switching current. Latching Options - no. The contact is equipped with 3pdt configuration. The product comes in 53.3mm depth. The product is available in plug in configuration. The product mks, is a highly preferred choice for users. Its accurate length is 34.5mm. In addition, the height is 34.5mm. It has a maximum AC switching voltage of 250v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 2.5 kva. It has equipped with 3 poles. The product is made from sturdy silver alloy materials.

pdf icon
MK-S Datasheet(Technical Reference)
