Coil Voltage:
24V dc
Application:
Interface
Terminal Type:
Plug In
Coil Resistance:
1100Ω
Life:
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Coil Power:
530mW
Maximum Switching Voltage DC:
30V dc
Maximum Switching Power DC:
150 W
Isolation Coil To Contact:
5kV ac
Maximum Operating Temperature:
+70°C
Switching Current:
5A
Minimum Operating Temperature:
-40°C
Latching:
No
Contact Configuration:
DPDT
Depth:
30.8mm
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Plug In
Series:
Harmony Relay RXG
Length:
13mm
Height:
29mm
Maximum Switching Voltage AC:
250V
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=61260&DisplayLogo=False
Maximum Switching Power AC:
1.25 kVA
Number of Poles:
2
Contact Material:
Silver Alloy
Must Release Voltage:
2.4 VDC
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Plug In
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
CE, CSA, DNV-GL, EAC, UL
Coil Type:
Non Latching
title:

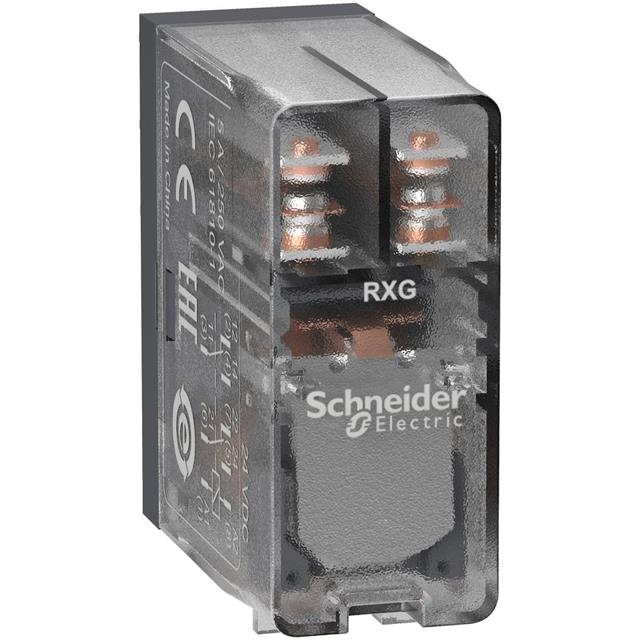

RXG25BD
Seal Rating:
-
Must Operate Voltage:
19.2 VDC
Relay Type:
General Purpose
Load - Max Switching:
1250VA, 150W
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
5 A
Features:
-
Mounting Type:
Socketable
Grade:
-
Series:
Harmony
Switching Voltage:
250VAC, 30VDC - Max
Release Time:
20 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
Silver Tin Oxide Indium Oxide (AgSnOInO)
Base Product Number:
RXG25
ECCN:
EAR99
