Coil Voltage:
120V ac
Application:
Industrial
Coil Resistance:
6300Ω
Life:
10000000 cycles
Standards Met:
CE, CSA, CULus, cURus File E173076 CCN NRNT2, IEC/EN 61810-1, NRNT7, NRNT8, UL
Coil Power:
820mW
Maximum Switching Voltage DC:
30V dc
Maximum Switching Power DC:
150 W
Isolation Coil To Contact:
5kV ac
Maximum Operating Temperature:
+70°C
Terminal Type:
Plug In
Latching:
No
Contact Configuration:
DPST-C/O
Depth:
37.1mm
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Plug In

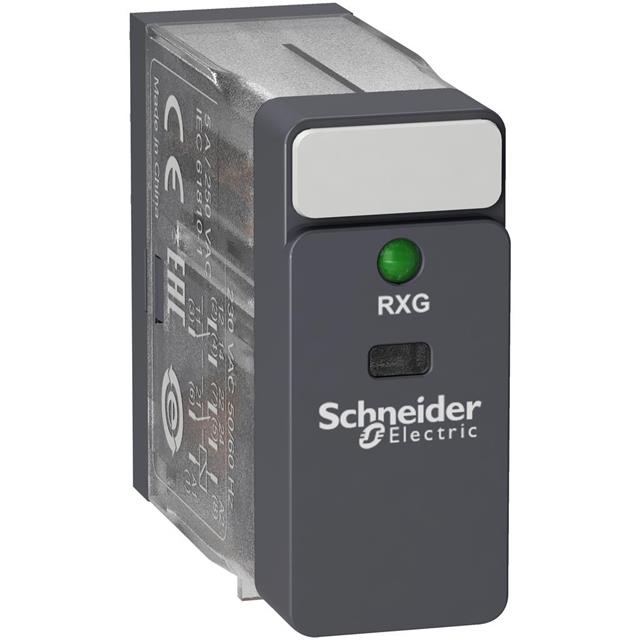

Series:
Harmony Relay RXG
Length:
13mm
Height:
30.6mm
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1.25 kVA
Number of Poles:
2
Contact Material:
Silver Alloy
Must Release Voltage:
36 VAC
HTSUS:
8536.49.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
120VAC
Termination Style:
Plug In
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
CE, CSA, DNV-GL, EAC, UL
Coil Type:
Non Latching
Switching Voltage:
250VAC, 30VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Load - Max Switching:
1250VA, 150W
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
standardLeadTime:
15 Weeks
Contact Rating (Current):
5 A
Features:
Lighted Indicator
Mounting Type:
Socketable
Grade:
-
Series:
Harmony
Release Time:
20 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
Silver Tin Oxide Indium Oxide (AgSnOInO)
Base Product Number:
RXG23
ECCN:
EAR99
