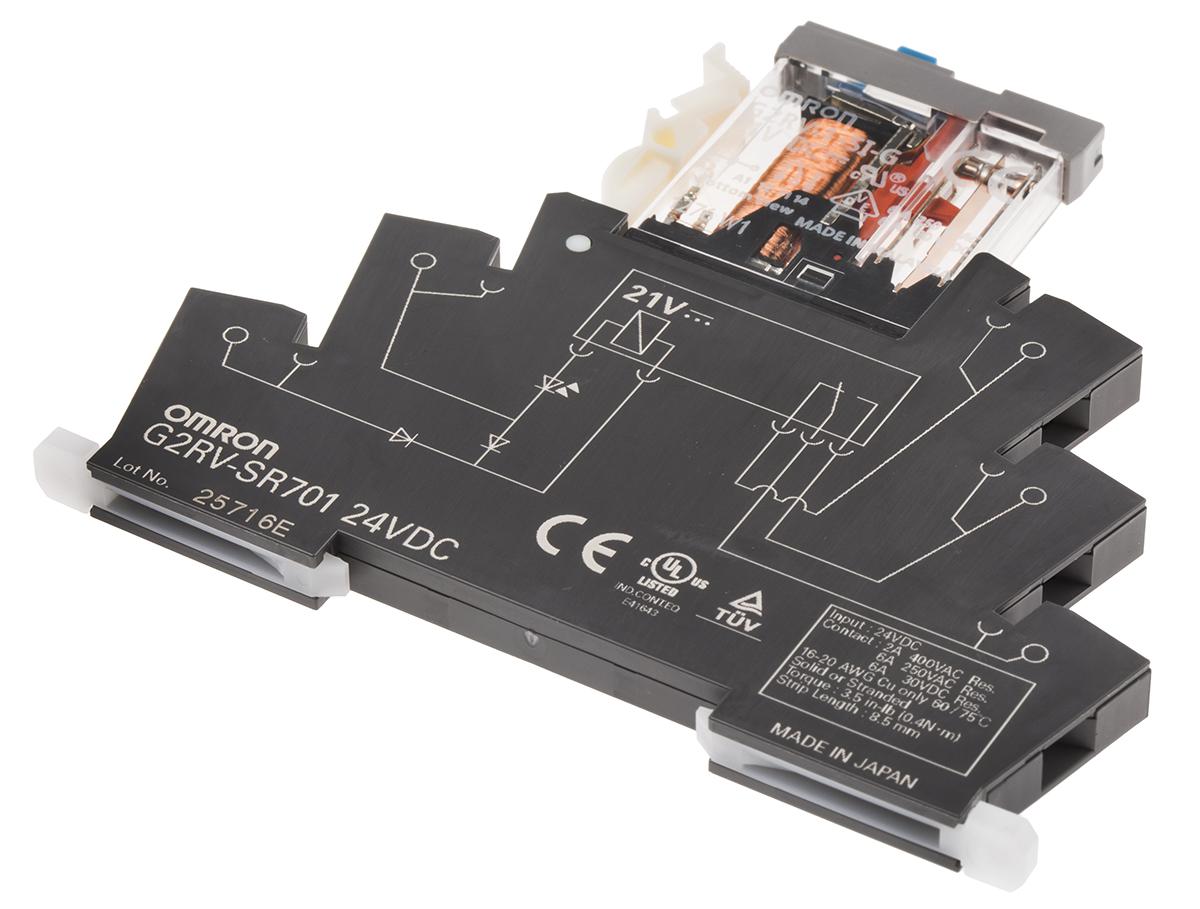

Omron SPDT Non-Latching Relay DIN Rail, 24V dc Coil, 6 A Non-Latching Relay

G2RV-SR701-DC24 Omron SPDT Non-Latching Relay DIN Rail, 24V dc Coil, 6 A Non-Latching Relay
G2RV-SR701 DC24
Omron

Product Information

Dimensions:
6.2 x 81 x 90mm
Coil Voltage:
24V dc
Terminal Type:
Screw
Life:
50000 (Electrical-NC) operations, 5000000 (Mechanical) operations, 70000 (Electrical-NO) operations
Standards Met:
CE, CULus, TUV Certification, UL 508 File No. E41643
Coil Power:
300mW
Maximum Switching Voltage DC:
125V dc
Maximum Switching Power DC:
180 W
Isolation Coil To Contact:
4kV ac
Maximum Operating Temperature:
+55°C
Switching Current:
6A
Maximum Switching Current AC:
6 A
Latching:
No
Contact Configuration:
SPDT
Depth:
81mm
Mounting Type:
DIN Rail
Series:
G2RV
Length:
6.2mm
Height:
90mm
Maximum Switching Current DC:
6 A
Maximum Switching Voltage AC:
440V ac
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1.5 kVA
Number of Poles:
1
Contact Material:
Silver Alloy
RoHs Compliant
Checking for live stock

This is SPDT Non-Latching Relay DIN Rail 24V dc Coil 6 A Non-Latching Relay manufactured by Omron. The manufacturer part number is G2RV-SR701 DC24. The given dimensions of the product include 6.2 x 81 x 90mm. The coil voltage of the product is 24v dc. The terminal is a screw type. It is capable of doing 50000 (electrical-nc) operations, 5000000 (mechanical) operations, 70000 (electrical-no) operations in a lifetime . The product complies with all safety standards, such as ce, culus, tuv certification, ul 508 file no. e41643. Robust coil power of 300mw. While it carries 125v dc of maximum DC switching voltage. It bears a maximum 180 w of DC switching power. The product has 4kv ac isolation coil to contact. It has a maximum operating temperature of +55°c. It is integrated with 6a switching current. It has a maximum 6 a switching current AC . Latching Options - no. The contact is equipped with spdt configuration. The product comes in 81mm depth. The product is available in din rail configuration. The product g2rv, is a highly preferred choice for users. Its accurate length is 6.2mm. In addition, the height is 90mm. It has a minimum 6 a DC switching current . It has a maximum AC switching voltage of 440v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 1.5 kva. It has equipped with 1 poles. The product is made from sturdy silver alloy materials.

pdf icon
Brochure - Industrial Relays(Technical Reference)
pdf icon
G2RV Datasheet(Technical Reference)
pdf icon
Line Drawing - 52103020(Technical Reference)
