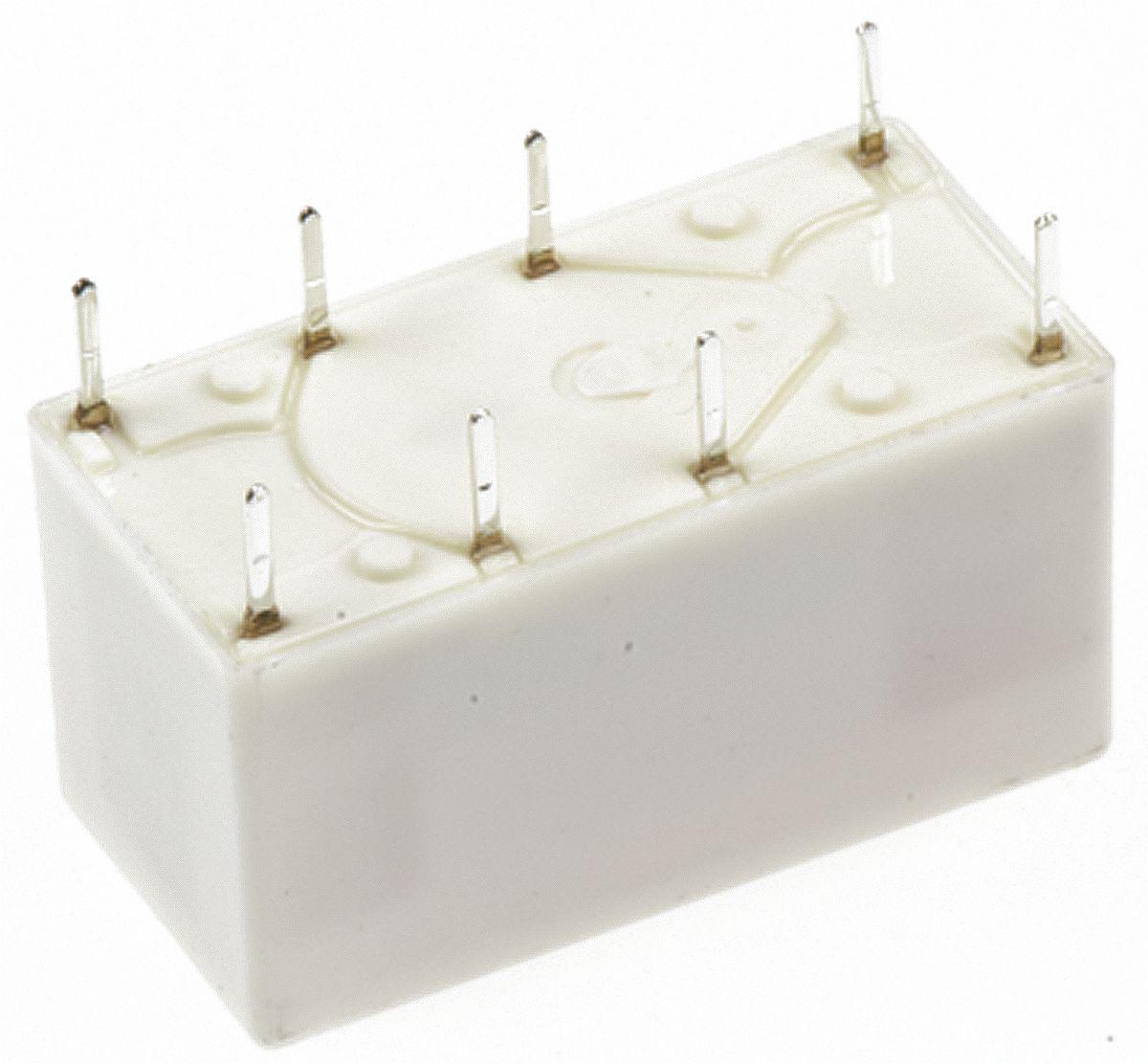

TE Connectivity DPDT PCB Mount Non-Latching Relay, 12V dc Coil

V23105A5476A201 TE Connectivity DPDT PCB Mount Non-Latching Relay, 12V dc Coil
V23105A5476A201
V23105A5476A201
TE Connectivity

Product Information

Maximum Operating Temperature:
+75°C
Mounting Type:
PCB Mount
Minimum Operating Temperature:
-25°C
Series:
D2n
Latching:
No
Coil Voltage:
12V dc
Length:
20.2mm
Height:
11mm
Switching Current:
3A
Application:
Signal
Depth:
10mm
Maximum Switching Power DC:
60 W
Contact Configuration:
DPDT
Maximum Switching Power AC:
125VA
Contact Material:
Gold Plated
Number of Poles:
2
Terminal Type:
Through Hole
Coil Resistance:
280Ω
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Non-Latching Relay 12V dc Coil manufactured by TE Connectivity. The manufacturer part number is V23105A5476A201. It has a maximum operating temperature of +75°c. The product is available in pcb mount configuration. Whereas, the minimum operating temperature of the product is -25°c. The product d2n, is a highly preferred choice for users. Latching Options - no. The coil voltage of the product is 12v dc. Its accurate length is 20.2mm. In addition, the height is 11mm. It is integrated with 3a switching current. Applications Information involves signal. The product comes in 10mm depth. It bears a maximum 60 w of DC switching power. The contact is equipped with dpdt configuration. It also features an AC switching power of 125va. The product is made from sturdy gold plated materials. It has equipped with 2 poles. The terminal is a through hole type. It holds up to 280ω coil resistance.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search V23105A5476A201 on website for other similar products.
We accept all major payment methods for all products including ET13973769. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with V23105A5476A201 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity DPDT PCB Mount Non-Latching Relay, 12V dc Coil. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity DPDT PCB Mount Non-Latching Relay, 12V dc Coil.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13973769 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13973769.
Yes. We ship V23105A5476A201 Internationally to many countries around the world.
