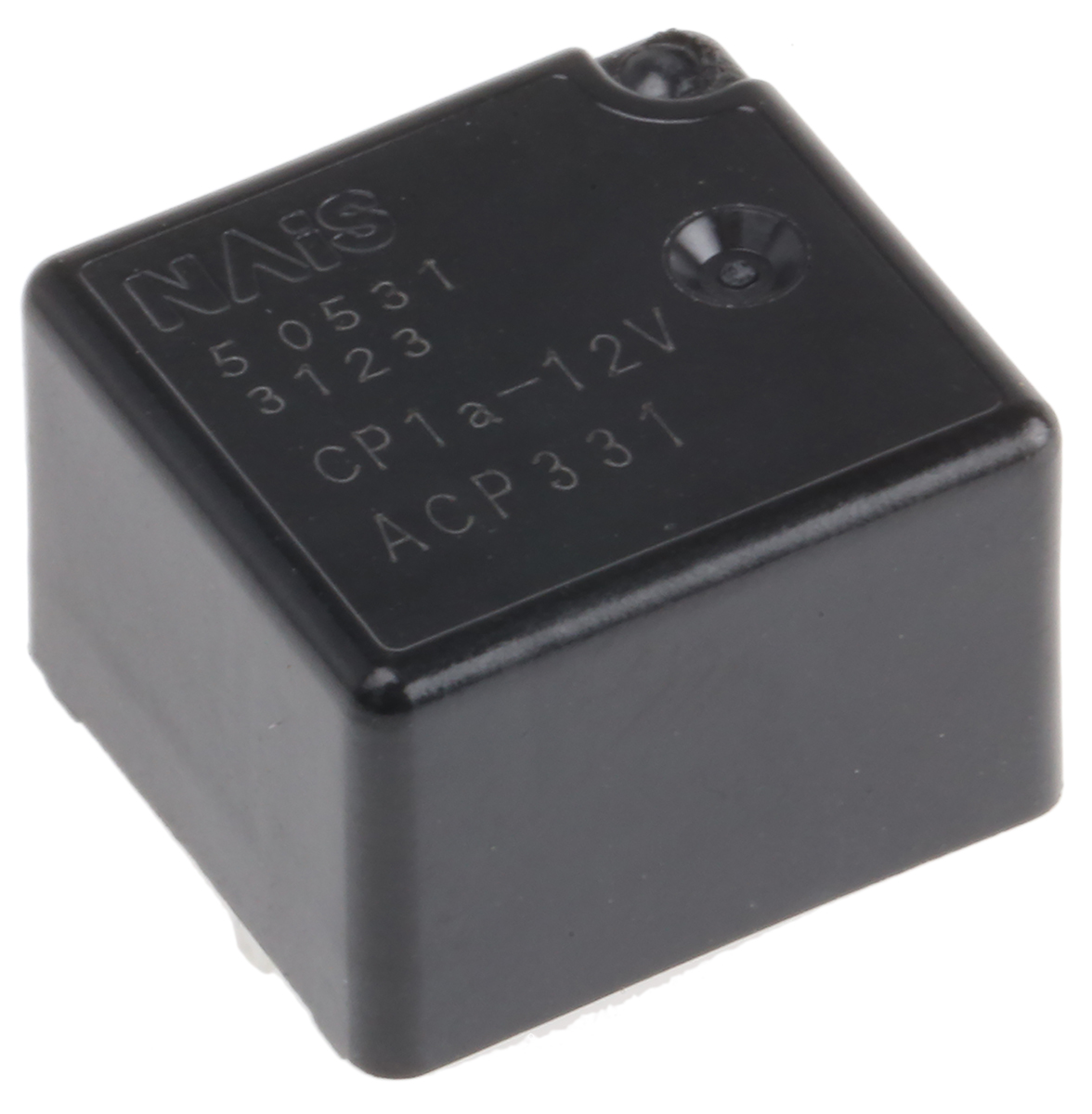

Panasonic SPNO Automotive Relay PCB Mount, 12V dc Coil, 25 A

CP1A12 Panasonic SPNO Automotive Relay PCB Mount, 12V dc Coil, 25 A
CP1A12
Panasonic

Product Information

Maximum Operating Temperature:
+85°C
Mounting Type:
PCB Mount
Coil Power:
640mW
Series:
CP
Switching Current:
25A
Coil Voltage:
12V dc
Length:
14mm
Height:
9.5mm
Application:
Automotive
Depth:
13mm
Maximum Switching Voltage AC:
14V ac
Minimum Operating Temperature:
-40°C
Contact Configuration:
SPST
Isolation Coil To Contact:
500V
Contact Material:
Silver
Number of Poles:
1
Terminal Type:
Through Hole
Coil Resistance:
225 Ω
RoHs Compliant
Checking for live stock

This is SPNO Automotive Relay PCB Mount 12V dc Coil 25 A manufactured by Panasonic. The manufacturer part number is CP1A12. It has a maximum operating temperature of +85°c. The product is available in pcb mount configuration. Robust coil power of 640mw. The product cp, is a highly preferred choice for users. It is integrated with 25a switching current. The coil voltage of the product is 12v dc. Its accurate length is 14mm. In addition, the height is 9.5mm. Applications Information involves automotive. The product comes in 13mm depth. It has a maximum AC switching voltage of 14v ac. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with spst configuration. The product has 500v isolation coil to contact. The product is made from sturdy silver materials. It has equipped with 1 poles. The terminal is a through hole type. It holds up to 225 ω coil resistance.
