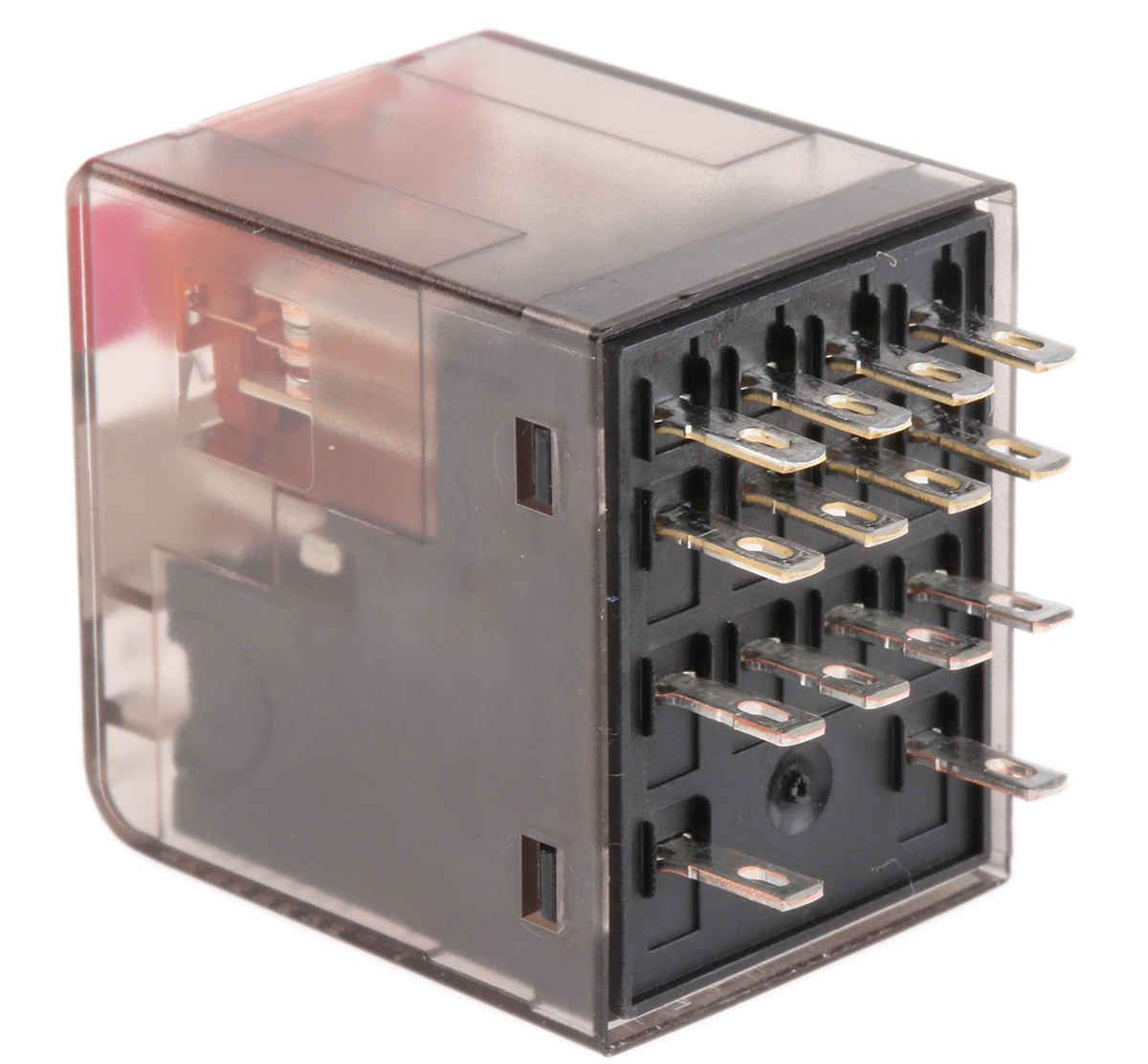

TE Connectivity 4PDT PCB Mount Non-Latching Relay, 24V ac Coil

PT570524-8-1419111-7 TE Connectivity 4PDT PCB Mount Non-Latching Relay, 24V ac Coil
PT570524 8-1419111-7
PT570524 8-1419111-7
ET13889131
TE Connectivity

Product Information

Maximum Operating Temperature:
+70°C
Mounting Type:
PCB Mount
Series:
PT
Latching:
No
Coil Voltage:
24V ac
Length:
28mm
Height:
35mm
Switching Current:
6A
Application:
Compact
Depth:
22.5mm
Minimum Operating Temperature:
-40°C
Contact Configuration:
4PDT
Maximum Switching Power AC:
1.5 kVA
Contact Material:
Silver Nickel Alloy
Number of Poles:
4
Terminal Type:
Quick Connect
Coil Resistance:
192Ω
RoHs Compliant
Checking for live stock

This is 4PDT PCB Mount Non-Latching Relay 24V ac Coil manufactured by TE Connectivity. The manufacturer part number is PT570524 8-1419111-7. It has a maximum operating temperature of +70°c. The product is available in pcb mount configuration. The product pt, is a highly preferred choice for users. Latching Options - no. The coil voltage of the product is 24v ac. Its accurate length is 28mm. In addition, the height is 35mm. It is integrated with 6a switching current. Applications Information involves compact. The product comes in 22.5mm depth. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with 4pdt configuration. It also features an AC switching power of 1.5 kva. The product is made from sturdy silver nickel alloy materials. It has equipped with 4 poles. The terminal is a quick connect type. It holds up to 192ω coil resistance.

pdf icon
CSA LR14385 TEST REPORT (PT)(Technical Reference)
pdf icon
VDE 115719(Technical Reference)
pdf icon
Tyco Shortform Relays Catalogue(Technical Reference)
pdf icon
Miniature Relay PT Series Data Sheet(Technical Reference)
pdf icon
CSA LR14385 (PT)(Technical Reference)
pdf icon
PT 570 524 Miniature Relay PT Data Sheet(Technical Reference)
pdf icon
UL/CUL RECOGNISED E214025(Technical Reference)
