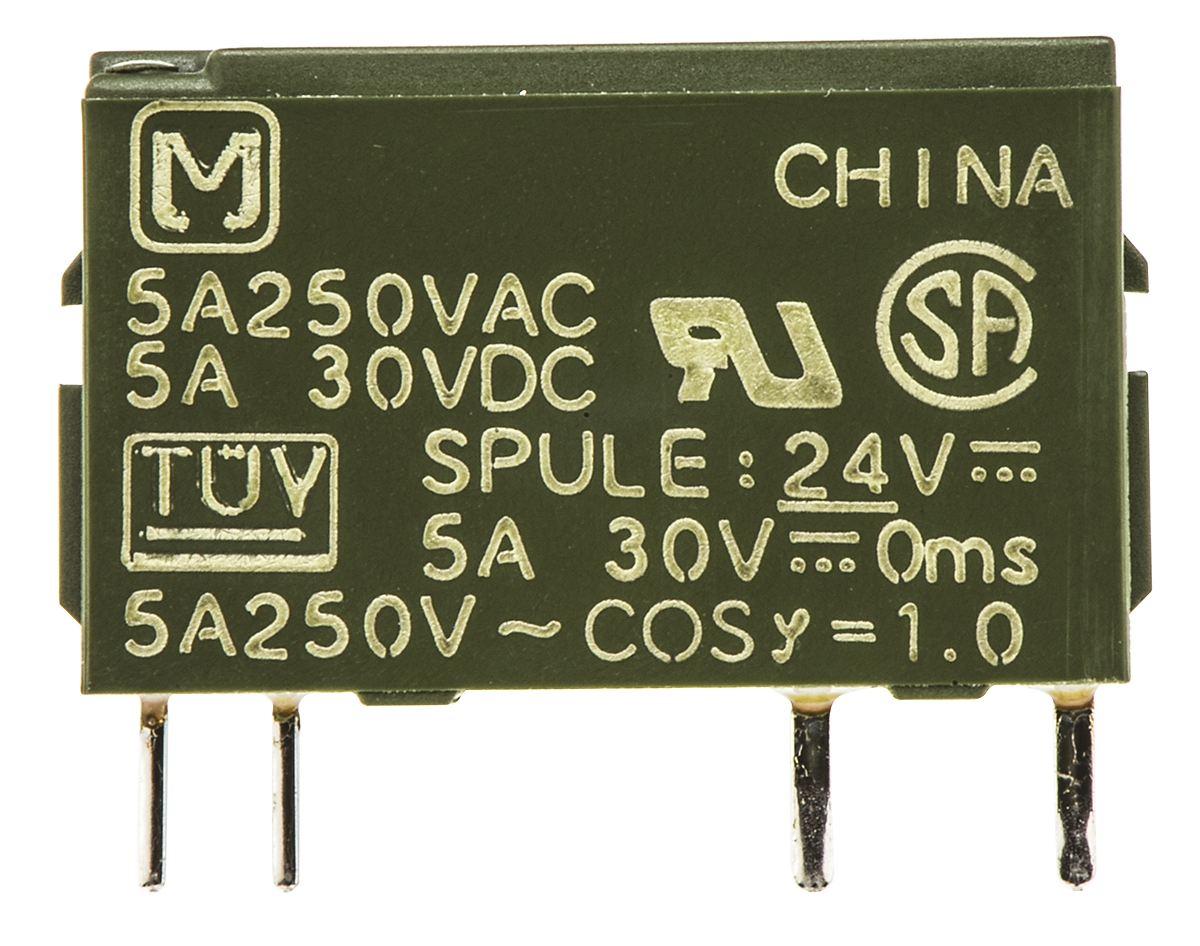

Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil, 5 A

PA1A24 Panasonic SPNO Non-Latching Relay PCB Mount, 24V dc Coil, 5 A
PA1A24
PA1A24
Panasonic

Product Information

Life:
20000000 (Electrical) cycles
Dimensions:
21 x 5 x 12.8mm
Mounting Type:
PCB Mount
Operating Temperature Range:
-40 → +70°C
Coil Power:
180mW
Switching Current:
5 A
Coil Voltage:
24V dc
Minimum Operating Temperature:
-40°C
Depth:
5mm
Height:
12.8mm
Application:
Power
Length:
21mm
Maximum Switching Power DC:
150 W
Maximum Switching Power AC:
1.25 kVA
Contact Configuration:
SPNO
Isolation Coil To Contact:
2kV rms
Contact Material:
Gold Plated
Maximum Operating Temperature:
+70°C
Terminal Type:
Through Hole
Coil Resistance:
3.2 kΩ
RoHs Compliant
Checking for live stock

This is SPNO Non-Latching Relay PCB Mount 24V dc Coil 5 A manufactured by Panasonic. The manufacturer part number is PA1A24. It is capable of doing 20000000 (electrical) cycles in a lifetime . The given dimensions of the product include 21 x 5 x 12.8mm. The product is available in pcb mount configuration. The product has -40 → +70°c of operating temperature range. Robust coil power of 180mw. It is integrated with 5 a switching current. The coil voltage of the product is 24v dc. Whereas, the minimum operating temperature of the product is -40°c. The product comes in 5mm depth. In addition, the height is 12.8mm. Applications Information involves power. Its accurate length is 21mm. It bears a maximum 150 w of DC switching power. It also features an AC switching power of 1.25 kva. The contact is equipped with spno configuration. The product has 2kv rms isolation coil to contact. The product is made from sturdy gold plated materials. It has a maximum operating temperature of +70°c. The terminal is a through hole type. It holds up to 3.2 kω coil resistance.
