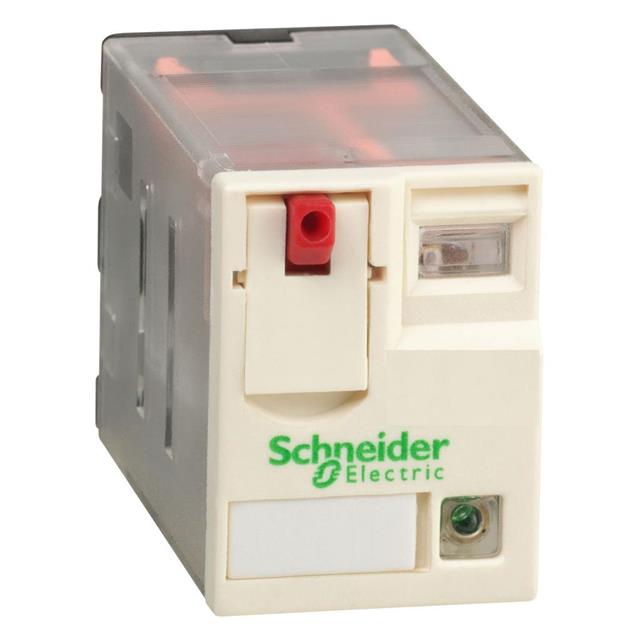

Schneider Electric RXM4SOC24D

RXM4SOC24D Schneider Electric
Schneider Electric

Product Information

Must Release Voltage:
2.4 VDC
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Plug In
Operating Temperature:
-40°C ~ 55°C
Approval Agency:
CE, CSA, IECEE, GOST, Lloyd's, UL
Coil Resistance:
650 Ohms
Coil Current:
36.9 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 28VDC - Max
Seal Rating:
-
Must Operate Voltage:
19.2 VDC
Relay Type:
General Purpose
Load - Max Switching:
1500VA, 168W
Contact Form:
4PDT (4 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
Contact Rating (Current):
6 A
Features:
Lighted Indicator, Test Button
Mounting Type:
Socketable
Grade:
-
Series:
Harmony
Release Time:
20 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
RXM4S
ECCN:
EAR99
Checking for live stock

This is manufactured by Schneider Electric. The manufacturer part number is RXM4SOC24D. While the must release voltage is a 2.4 vdc. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has plug in terminal style. The product has -40°c ~ 55°c operating temperature range. It is approved by ce, csa, iecee, gost, lloyd's, ul. It holds up to 650 ohms coil resistance. It has a coil current of 36.9 ma. The coil is a non latching type. The product's switching voltage is 250vac, 28vdc - max. On the other hand, 19.2 vdc is the given crucial/must operating voltage. This is basically a general purpose. It also has a 4pdt (4 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 20 ms. It has a contact current rating of 6 a. The splendid features of the product include lighted indicator, test button. The product is available in socketable configuration. The product harmony, is a highly preferred choice for users. While 20 ms is its release time. In addition, box is the available packaging type of the product. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to rxm4s, a base product number of the product. The product is designated with the ear99 code number.
