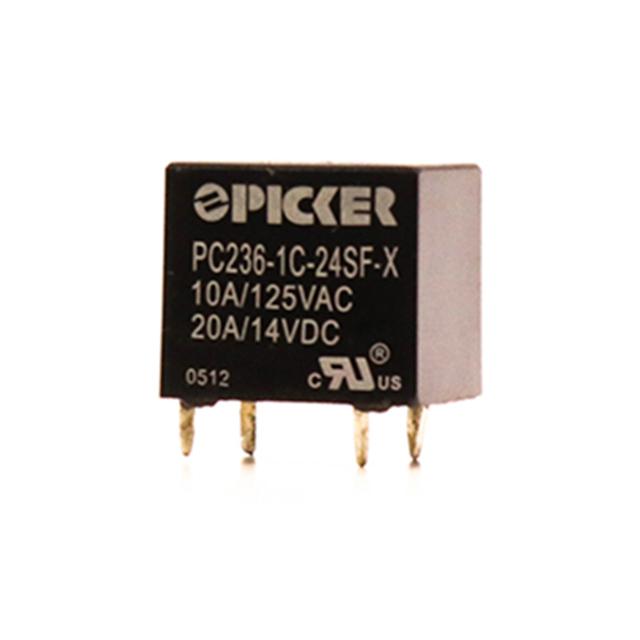

Picker Components PC236-1C-24SF-X

PC236-1C-24SF-X Picker Components
Picker Components

Product Information

Must Release Voltage:
1.2 VDC
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
PC Pin
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
cURus
Coil Resistance:
960 Ohms
Coil Current:
25 mA
Coil Type:
Non Latching
title:
PC236-1C-24SF-X
Seal Rating:
Sealed - Fully
Must Operate Voltage:
19.2 VDC
Relay Type:
General Purpose
Load - Max Switching:
5540VA, 960W
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
10 ms
Qualification:
-
standardLeadTime:
16 Weeks
Contact Rating (Current):
20 A
Features:
-
Mounting Type:
Through Hole
Grade:
-
Series:
PC236
Switching Voltage:
277VAC, 48VDC - Max
Release Time:
5 ms
Packaging:
Tube
Coil Insulation:
Class F
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
PC236-1C
ECCN:
EAR99
Checking for live stock

This is manufactured by Picker Components. The manufacturer part number is PC236-1C-24SF-X. While the must release voltage is a 1.2 vdc. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has pc pin terminal style. In addition, it is reach unaffected. The product has -40°c ~ 85°c operating temperature range. It is approved by curus. It holds up to 960 ohms coil resistance. It has a coil current of 25 ma. The coil is a non latching type. Seal rating options: sealed - fully. On the other hand, 19.2 vdc is the given crucial/must operating voltage. This is basically a general purpose. It also has a spdt (1 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 10 ms. It has a long 16 weeks standard lead time. It has a contact current rating of 20 a. The product is available in through hole configuration. The product pc236, is a highly preferred choice for users. The product's switching voltage is 277vac, 48vdc - max. While 5 ms is its release time. In addition, tube is the available packaging type of the product. The coil is a class f insulation. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to pc236-1c, a base product number of the product. The product is designated with the ear99 code number.
