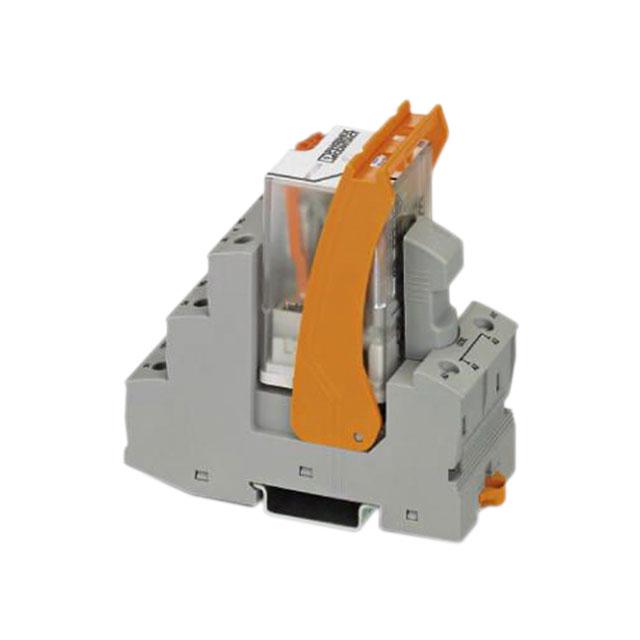

Phoenix Contact 230V ac DIN Rail Interface Relay Module, DPDT, Screw

2903301 Phoenix Contact 230V ac DIN Rail Interface Relay Module, DPDT, Screw
2903301
2903301
ET16756614
ET16756614
Power Relays, Over 2 Amps
Power Relays, Over 2 Amps
Phoenix Contact

Product Information

Life:
20000000 cycles
Dimensions:
40 x 90 x 96mm
Mounting Type:
DIN Rail
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+50°C
Switching Current:
10 mA
Coil Voltage:
230V ac
Depth:
90mm
Height:
96mm
Length:
40mm
Input Current:
13mA
Minimum Operating Temperature:
-40°C
Contact Configuration:
DPDT
Operating Temperature Range:
-40 → +50°C
Contact Material:
Silver Alloy
Number of Poles:
2
Terminal Type:
Screw
Standards Met:
DIN EN 50178
HTSUS:
8536.49.0050
RoHS Status:
RoHS Compliant
Coil Voltage:
230VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 50°C
Coil Resistance:
17.69 kOhms
Coil Current:
13 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
15 ms
Must Release Voltage:
-
Contact Rating (Current):
7 A
Features:
Lighted Indicator, Socket Included, Varistor
Mounting Type:
DIN Rail
Series:
RIF
Release Time:
20 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29033
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 230V ac DIN Rail Interface Relay Module DPDT Screw manufactured by Phoenix Contact. The manufacturer part number is 2903301. It is capable of doing 20000000 cycles in a lifetime . The given dimensions of the product include 40 x 90 x 96mm. The product is available in din rail configuration. The product's switching voltage is 250v ac/dc. It has a maximum operating temperature of +50°c. It is integrated with 10 ma switching current. The coil voltage of the product is 230v ac. The product comes in 90mm depth. In addition, the height is 96mm. Its accurate length is 40mm. It has about 13ma input current . Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with dpdt configuration. The product has -40 → +50°c of operating temperature range. The product is made from sturdy silver alloy materials. It has equipped with 2 poles. The terminal is a screw type. The product complies with all safety standards, such as din en 50178. It is assigned with possible HTSUS value of 8536.49.0050. The product is rohs compliant. The coil voltage of the product is 230vac. Moreover, it has screw terminal terminal style. The product has -40°c ~ 50°c operating temperature range. It holds up to 17.69 kohms coil resistance. It has a coil current of 13 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is not applicable. The operating time of the product is 15 ms. It has a contact current rating of 7 a. The splendid features of the product include lighted indicator, socket included, varistor. The product rif, is a highly preferred choice for users. While 20 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 29033, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Mult Devs - End of Life 27/SEP/2021(PCN Obsolescence/ EOL)
