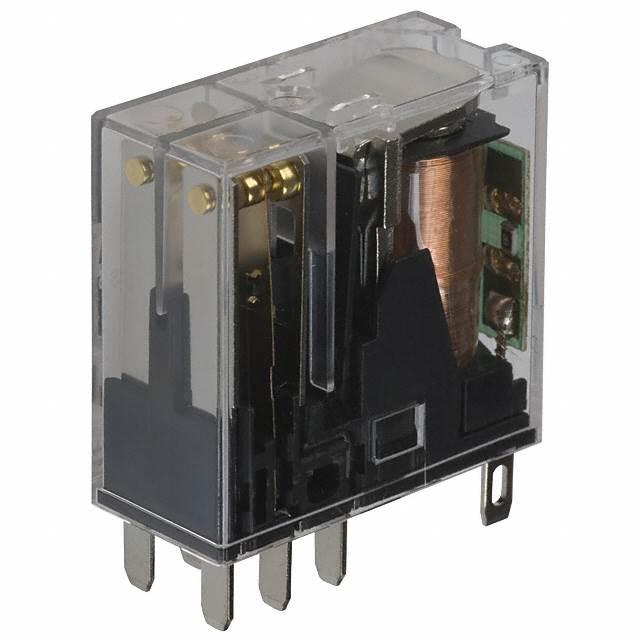

Panasonic Electric Works AHN211X0

AHN211X0 Panasonic Electric Works
Panasonic Electric Works

Product Information

Must Release Voltage:
33 VAC
HTSUS:
8536.49.0050
Coil Voltage:
110VAC
Termination Style:
Plug In
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
cURus, VDE
Coil Resistance:
10.377 kOhms
Coil Current:
10.6 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 30VDC - Max
Load - Max Switching:
1250VA, 150W
Seal Rating:
-
Must Operate Voltage:
88 VAC
Relay Type:
General Purpose
Package:
Tube
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
15 ms
Qualification:
-
Contact Rating (Current):
5 A
Features:
Lighted Indicator
Mounting Type:
Socketable
Grade:
-
Series:
AHN
Release Time:
5 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
AHN211
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is AHN211X0. While the must release voltage is a 33 vac. It is assigned with possible HTSUS value of 8536.49.0050. The coil voltage of the product is 110vac. Moreover, it has plug in terminal style. The product has -40°c ~ 70°c operating temperature range. It is approved by curus, vde. It holds up to 10.377 kohms coil resistance. It has a coil current of 10.6 ma. The coil is a non latching type. The product's switching voltage is 250vac, 30vdc - max. On the other hand, 88 vac is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in tube package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. It has a contact current rating of 5 a. The splendid features of the product include lighted indicator. The product is available in socketable configuration. The product ahn, is a highly preferred choice for users. While 5 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to ahn211, a base product number of the product. The product is designated with the ear99 code number.
