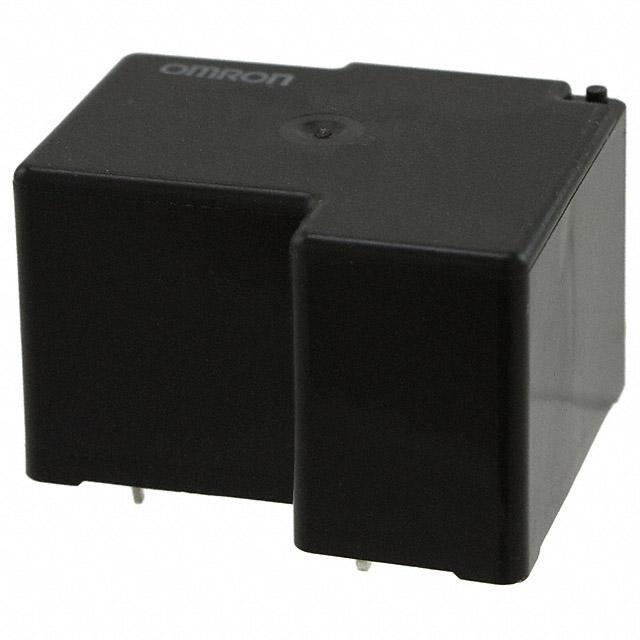

Omron Electronics Inc-EMC Div G8P-1A4P-BG-DC12

G8P-1A4P-BG-DC12 Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div

Product Information

Must Release Voltage:
1.2 VDC
HTSUS:
8536.41.0050
Coil Voltage:
12VDC
Termination Style:
PC Pin
REACH Status:
Vendor Undefined
Operating Temperature:
-55°C ~ 105°C
Approval Agency:
CSA, UR
Coil Resistance:
155 Ohms
Coil Current:
77 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 28VDC - Max
Seal Rating:
Sealed - Fully
Must Operate Voltage:
9 VDC
Relay Type:
General Purpose
Load - Max Switching:
5000VA, 560W
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
Contact Rating (Current):
20 A
Features:
-
Mounting Type:
Through Hole
Grade:
-
Series:
G8P
Release Time:
10 ms
Packaging:
Tray
Coil Insulation:
Class F
Contact Material:
Silver Alloy, Cadmium Free
Base Product Number:
G8P-1A
ECCN:
EAR99
Checking for live stock

This is manufactured by Omron Electronics Inc-EMC Div. The manufacturer part number is G8P-1A4P-BG-DC12. While the must release voltage is a 1.2 vdc. It is assigned with possible HTSUS value of 8536.41.0050. The coil voltage of the product is 12vdc. Moreover, it has pc pin terminal style. In addition, it is vendor undefined. The product has -55°c ~ 105°c operating temperature range. It is approved by csa, ur. It holds up to 155 ohms coil resistance. It has a coil current of 77 ma. The coil is a non latching type. The product's switching voltage is 250vac, 28vdc - max. Seal rating options: sealed - fully. On the other hand, 9 vdc is the given crucial/must operating voltage. This is basically a general purpose. It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 20 ms. It has a contact current rating of 20 a. The product is available in through hole configuration. The product g8p, is a highly preferred choice for users. While 10 ms is its release time. In addition, tray is the available packaging type of the product. The coil is a class f insulation. The product is made from sturdy silver alloy, cadmium free materials. Moreover, it corresponds to g8p-1a, a base product number of the product. The product is designated with the ear99 code number.
