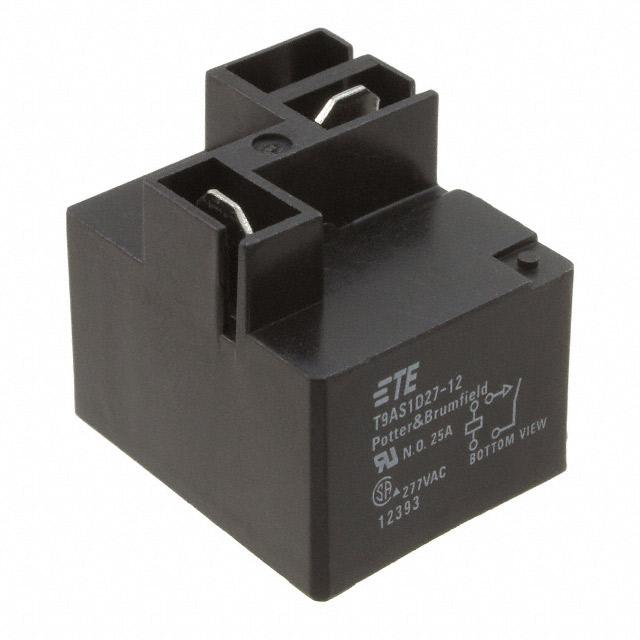

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is T9AS1D27-12. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 12vdc. Moreover, it has pc pin, quick connect - 0.250" (6.3mm) terminal style. In addition, it is reach affected. The product has -55°c ~ 85°c operating temperature range. It holds up to 144 ohms coil resistance. It has a coil current of 83 ma. The coil is a non latching type. The product's switching voltage is 250vac - nom. Seal rating options: sealed - fully. On the other hand, 9 vdc is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in tray package . It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. While the must release voltage is a 1.2 vdc. It has a long 30 weeks standard lead time. It has a contact current rating of 21 a. The product is available in through hole configuration. The product t9a, is a highly preferred choice for users. While 15 ms is its release time. The coil is a class f insulation. The product is made from sturdy silver cadmium oxide (agcdo) materials. Moreover, it corresponds to t9as1, a base product number of the product. The product is designated with the ear99 code number.
