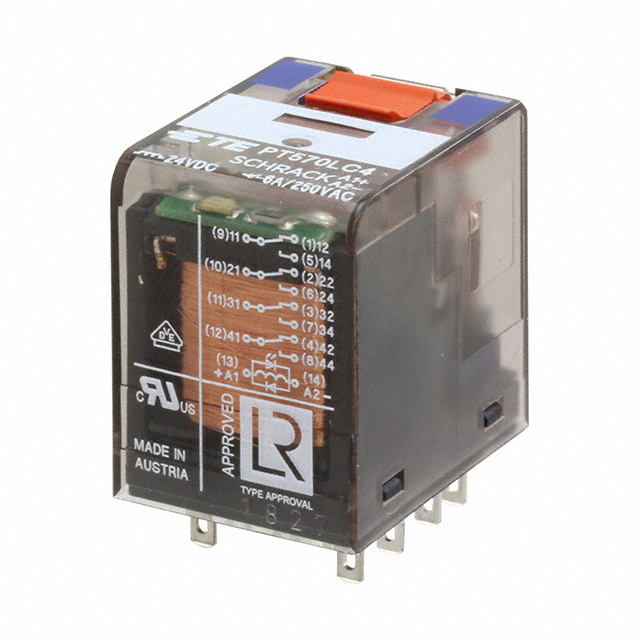

TE Connectivity Potter & Brumfield Relays 7-1415541-0

7-1415541-0 TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

Must Release Voltage:
2.4 VDC
HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Plug In, Quick Connect - 0.110" (2.8mm)
REACH Status:
Vendor Undefined
Operating Temperature:
-40°C ~ 70°C
Approval Agency:
cURus, VDE
Coil Resistance:
777 Ohms
Coil Current:
30.8 mA
Coil Type:
Non Latching
title:
7-1415541-0
Seal Rating:
Sealed - Flux Protection
Must Operate Voltage:
18 VDC
Relay Type:
General Purpose
Load - Max Switching:
1440VA
Contact Form:
4PDT (4 Form C)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
15 ms
Qualification:
-
standardLeadTime:
21 Weeks
Contact Rating (Current):
6 A
Features:
Diode, Lighted Indicator, Test Button
Mounting Type:
Socketable
Grade:
-
Series:
PT, SCHRACK
Switching Voltage:
240VAC - Max
Release Time:
18 ms
Packaging:
Tube
Coil Insulation:
Class F
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
PT570
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is 7-1415541-0. While the must release voltage is a 2.4 vdc. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has plug in, quick connect - 0.110" (2.8mm) terminal style. In addition, it is vendor undefined. The product has -40°c ~ 70°c operating temperature range. It is approved by curus, vde. It holds up to 777 ohms coil resistance. It has a coil current of 30.8 ma. The coil is a non latching type. Seal rating options: sealed - flux protection. On the other hand, 18 vdc is the given crucial/must operating voltage. This is basically a general purpose. It also has a 4pdt (4 form c) contact form. Its typical moisture sensitivity level is not applicable. The operating time of the product is 15 ms. It has a long 21 weeks standard lead time. It has a contact current rating of 6 a. The splendid features of the product include diode, lighted indicator, test button. The product is available in socketable configuration. The product pt, schrack, is a highly preferred choice for users. The product's switching voltage is 240vac - max. While 18 ms is its release time. In addition, tube is the available packaging type of the product. The coil is a class f insulation. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to pt570, a base product number of the product. The product is designated with the ear99 code number.
