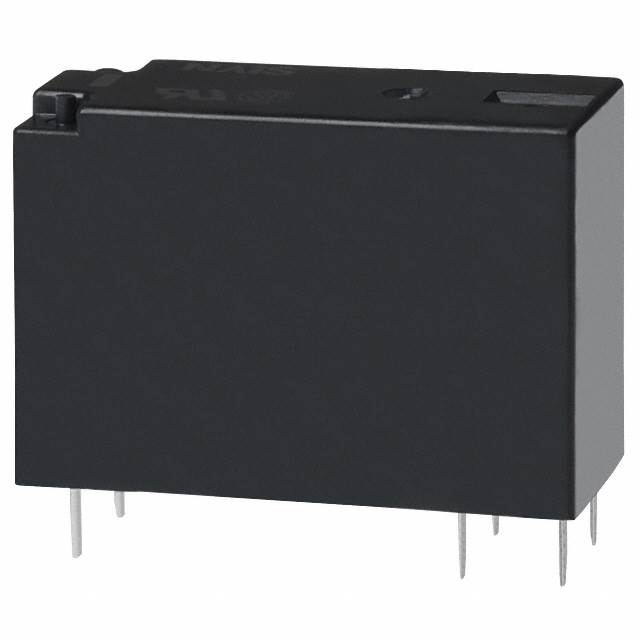

Panasonic Electric Works JW2ASN-DC18V

Enrgtech Part No: ET12836155
|
Manufacturer Part No:
JW2ASN-DC18V
|
Manufacturer: Panasonic Electric Works

Product Information

Must Release Voltage:

1.8 VDC

HTSUS:

8536.41.0020

RoHS Status:

RoHS Compliant

Coil Voltage:

18VDC

Termination Style:

PC Pin

Operating Temperature:

-40°C ~ 60°C

Approval Agency:

CQC, CSA, UR, VDE

Coil Resistance:

611 Ohms

Coil Current:

29 mA

Coil Type:

Non Latching

title:

JW2ASN-DC18V

Seal Rating:

Sealed - Fully

Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is JW2ASN-DC18V. While the must release voltage is a 1.8 vdc. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs compliant. The coil voltage of the product is 18vdc. Moreover, it has pc pin terminal style. The product has -40°c ~ 60°c operating temperature range. It is approved by cqc, csa, ur, vde. It holds up to 611 ohms coil resistance. It has a coil current of 29 ma. The coil is a non latching type. Seal rating options: sealed - fully. On the other hand, 12.6 vdc is the given crucial/must operating voltage. This is basically a general purpose. It also has a dpst-no (2 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. It has a long 20 weeks standard lead time. It has a contact current rating of 5 a. The product is available in through hole configuration. The product jw, is a highly preferred choice for users. The product's switching voltage is 250vac, 30vdc - max. While 5 ms is its release time. In addition, tray is the available packaging type of the product. The coil is a class e insulation. The product is made from sturdy silver alloy materials. Moreover, it corresponds to jw2as, a base product number of the product. The product is designated with the ear99 code number.

JW Series Datasheet(Datasheets)

Standards Chart(Other Related Documents)

General Appl Guidelines(Other Related Documents)
