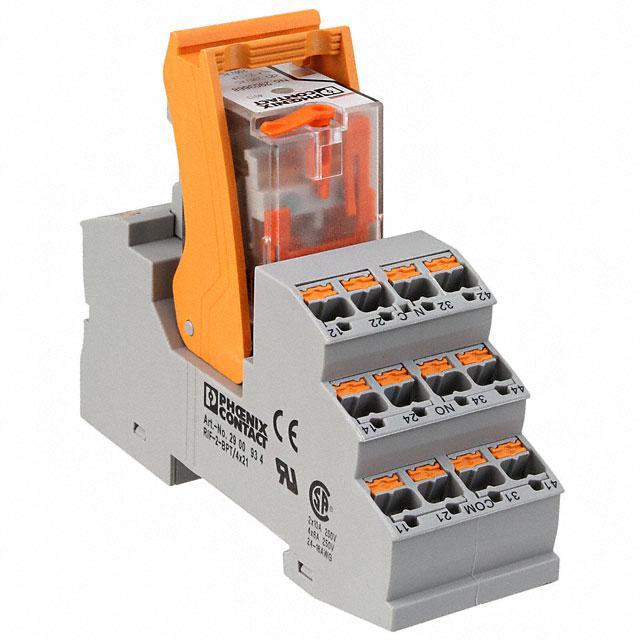

Phoenix Contact 2903310

2903310 Phoenix Contact
2903310
Phoenix Contact

Product Information

Dimensions:
75 x 31 x 96mm
Coil Voltage:
230V ac
Turn On Time:
5 → 15ms
Turn Off Time:
5 → 20ms
Input Current:
6.5mA
Life:
20000000 (Mechanical) cycles
Standards Met:
EAC
Switching Voltage:
250V ac/dc
Maximum Operating Temperature:
+50°C
Terminal Type:
Plug In
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +50°C
Contact Configuration:
DPDT
Depth:
75mm
Relay Switching Classification:
Pre-Assembled Relay Module
Mounting Type:
DIN Rail
Series:
RIF-2-RPT-LV-230AC/2X21
Input Voltage Range:
184 → 276V ac
Accessory Type:
Relay Module
Length:
31mm
Height:
96mm
Minimum Input Voltage:
184V ac
Number of Poles:
2
Maximum Input Voltage:
276V ac
Contact Material:
Silver Alloy
Must Release Voltage:
-
HTSUS:
8536.49.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
230VAC
Termination Style:
Spring Terminal
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 50°C
Approval Agency:
CSA
Coil Current:
6.5 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
edacadModel:
2903310 Models
edacadModelUrl:
/en/models/4755358
Must Operate Voltage:
-
Relay Type:
General Purpose
Load - Max Switching:
-
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
15 ms
Qualification:
-
standardLeadTime:
4 Weeks
Contact Rating (Current):
8.5 A
Features:
Lighted Indicator, Socket Included, Varistor
Mounting Type:
DIN Rail
Grade:
-
Series:
RIF
Release Time:
20 ms
Packaging:
Bulk
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
29033
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 2903310. The given dimensions of the product include 75 x 31 x 96mm. The coil voltage of the product is 230v ac. It has a 5 → 15ms turn On time. The given turn off time is 5 → 20ms. It has about 6.5ma input current . It is capable of doing 20000000 (mechanical) cycles in a lifetime . The product complies with all safety standards, such as eac. The product's switching voltage is 250v ac/dc. It has a maximum operating temperature of +50°c. The terminal is a plug in type. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +50°c of operating temperature range. The contact is equipped with dpdt configuration. The product comes in 75mm depth. It has a pre-assembled relay module switching relay configuration . The product is available in din rail configuration. The product rif-2-rpt-lv-230ac/2x21, is a highly preferred choice for users. It has 184 → 276v ac of input voltage range. It is a type of relay module accessory. Its accurate length is 31mm. In addition, the height is 96mm. The product has 184v ac of minimum input voltage. It has equipped with 2 poles. 276v ac is the maximum voltage of the bespoke product. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.49.0050. The product is rohs3 compliant. The coil voltage of the product is 230vac. Moreover, it has spring terminal terminal style. In addition, it is reach unaffected. The product has -40°c ~ 50°c operating temperature range. It is approved by csa. It has a coil current of 6.5 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. It has a long 4 weeks standard lead time. It has a contact current rating of 8.5 a. The splendid features of the product include lighted indicator, socket included, varistor. The product rif, is a highly preferred choice for users. While 20 ms is its release time. In addition, bulk is the available packaging type of the product. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to 29033, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Instruction Sheet - RIF Series(Technical Reference)
pdf icon
Application Note - Interface Relay(Technical Reference)
pdf icon
Datasheet 2903310(Technical Reference)
pdf icon
Les incontournables Phoenix Contact(Technical Reference)
pdf icon
2903yyy Aesthetic 19/Sep/2014(PCN Design/Specification)
pdf icon
2903310(Datasheets)
