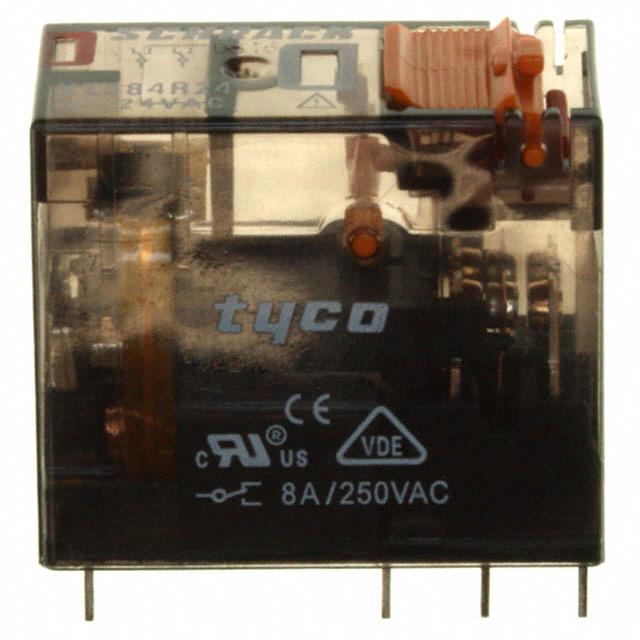

TE Connectivity Potter & Brumfield Relays XT484R24

XT484R24 TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

HTSUS:
8536.41.0020
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VAC
Termination Style:
Plug In
REACH Status:
Vendor Undefined
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
350 Ohms
Coil Current:
31.6 mA
Coil Type:
Non Latching
Switching Voltage:
400VAC - Max
Seal Rating:
-
edacadModel:
XT484R24 Models
edacadModelUrl:
/en/models/1841568
Must Operate Voltage:
18 VAC
Relay Type:
General Purpose
Package:
Tube
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
9 ms
Must Release Voltage:
3.6 VAC
Contact Rating (Current):
8 A
Features:
Lighted Indicator
Mounting Type:
Socketable
Series:
XT, SCHRACK
Release Time:
6 ms
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
XT48
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is XT484R24. It is assigned with possible HTSUS value of 8536.41.0020. The product is rohs3 compliant. The coil voltage of the product is 24vac. Moreover, it has plug in terminal style. In addition, it is vendor undefined. The product has -40°c ~ 70°c operating temperature range. It holds up to 350 ohms coil resistance. It has a coil current of 31.6 ma. The coil is a non latching type. The product's switching voltage is 400vac - max. On the other hand, 18 vac is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in tube package . It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is not applicable. The operating time of the product is 9 ms. While the must release voltage is a 3.6 vac. It has a contact current rating of 8 a. The splendid features of the product include lighted indicator. The product is available in socketable configuration. The product xt, schrack, is a highly preferred choice for users. While 6 ms is its release time. The product is made from sturdy silver nickel (agni) materials. Moreover, it corresponds to xt48, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 30/JUN/2022(PCN Obsolescence/ EOL)
