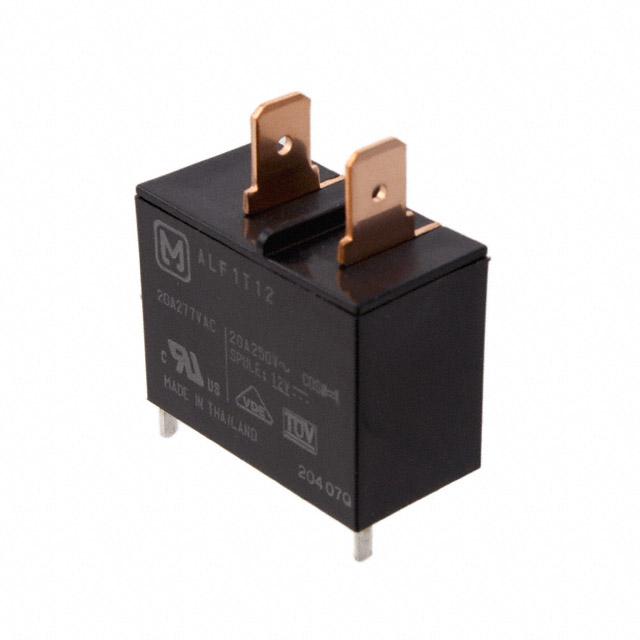

Panasonic Electric Works ALF1T12

ALF1T12 Panasonic Electric Works
ALF1T12
Panasonic Electric Works

Product Information

Must Release Voltage:
1.2 VDC
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
PC Pin, Quick Connect - 0.250" (6.3mm)
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 60°C
Approval Agency:
cURus, VDE
Coil Resistance:
160 Ohms
Coil Current:
75 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC - Max
Seal Rating:
-
Must Operate Voltage:
8.4 VDC
Relay Type:
General Purpose
Load - Max Switching:
5000VA
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
standardLeadTime:
16 Weeks
Contact Rating (Current):
20 A
Features:
-
Mounting Type:
Through Hole
Grade:
-
Series:
ALF
Release Time:
15 ms
Packaging:
Bulk
Coil Insulation:
-
Contact Material:
Silver Tin Oxide (AgSnO)
Base Product Number:
ALF1T1
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electric Works. The manufacturer part number is ALF1T12. While the must release voltage is a 1.2 vdc. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 12vdc. Moreover, it has pc pin, quick connect - 0.250" (6.3mm) terminal style. In addition, it is reach unaffected. The product has -40°c ~ 60°c operating temperature range. It is approved by curus, vde. It holds up to 160 ohms coil resistance. It has a coil current of 75 ma. The coil is a non latching type. The product's switching voltage is 250vac - max. On the other hand, 8.4 vdc is the given crucial/must operating voltage. This is basically a general purpose. It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 20 ms. It has a long 16 weeks standard lead time. It has a contact current rating of 20 a. The product is available in through hole configuration. The product alf, is a highly preferred choice for users. While 15 ms is its release time. In addition, bulk is the available packaging type of the product. The product is made from sturdy silver tin oxide (agsno) materials. Moreover, it corresponds to alf1t1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
ALF Series Datasheet(Datasheets)
pdf icon
Mult Dev Label Chgs 20/Sep/2019(PCN Packaging)
pdf icon
Standards Chart(Other Related Documents)
pdf icon
How to Read Date Codes(Other Related Documents)
