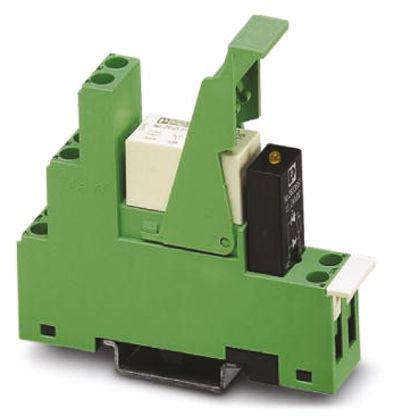

Phoenix Contact 2834384
Product Information
Life:
30000000 Cycles
Dimensions:
71 x 16 x 78.5mm
Mounting Type:
DIN Rail
Operating Temperature Range:
-25 → +60°C
Load Current Rating:
50mA
Depth:
16mm
Load Voltage Rating:
30 V ac, 36 V dc
Height:
78.5mm
Length:
71mm
Maximum Input Voltage:
120V ac
Input Current:
7 mA @ 60 Hz, 9 mA @ 50 Hz
Minimum Operating Temperature:
-25°C
Turn On Time:
12ms
Turn Off Time:
16ms
Terminal Type:
Screw
Contact Configuration:
SPDT
Maximum Operating Temperature:
+60°C
Contact Material:
Gold Plated
HTSUS:
8536.49.0050
RoHS Status:
RoHS Compliant
Coil Voltage:
120VAC
Termination Style:
Screw Terminal
Operating Temperature:
-25°C ~ 60°C
Coil Resistance:
17.14 kOhms
Coil Current:
7 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
12 ms
Must Release Voltage:
-
Contact Rating (Current):
12 A
Features:
Lighted Indicator, Varistor
Mounting Type:
DIN Rail
Series:
PR1-RSC3
Release Time:
16 ms
Coil Insulation:
-
ECCN:
EAR99
Base Product Number:
28343
Contact Material:
Silver Nickel (AgNi), Gold (Au)
