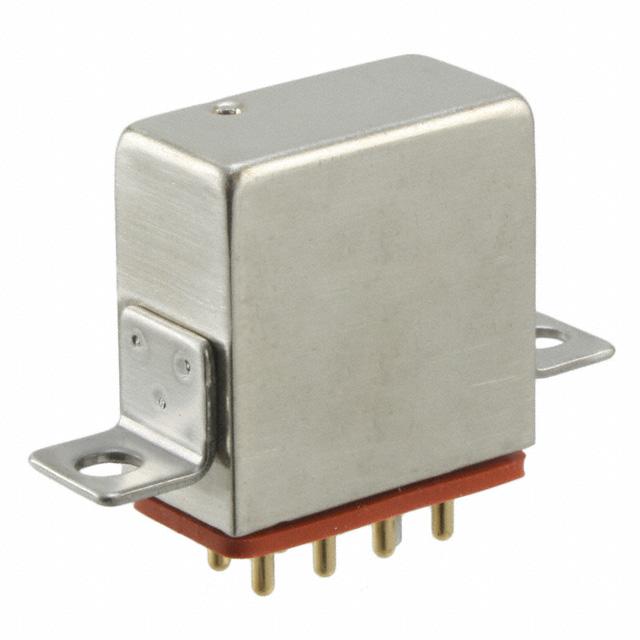

Microsemi Corporation BR246-320A2-28V-024M

BR246-320A2-28V-024M Microsemi Corporation
Microsemi Corporation

Product Information

Must Release Voltage:
5.1 VDC
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
28VDC
Termination Style:
Plug In
REACH Status:
REACH Unaffected
Operating Temperature:
-70°C ~ 125°C
Approval Agency:
-
Coil Resistance:
320 Ohms
Coil Current:
87.5 mA
Coil Type:
Non Latching
Switching Voltage:
208VAC, 28VDC - Max
Seal Rating:
-
Must Operate Voltage:
18 VDC
Relay Type:
General Purpose
Load - Max Switching:
2080VA, 280W
Contact Form:
DPDT (2 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
15 ms
Qualification:
-
Contact Rating (Current):
10 A
Features:
-
Mounting Type:
Socketable
Grade:
-
Series:
BR246
Release Time:
15 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
-
Base Product Number:
BR246-32
ECCN:
EAR99
Checking for live stock

This is manufactured by Microsemi Corporation. The manufacturer part number is BR246-320A2-28V-024M. While the must release voltage is a 5.1 vdc. It is assigned with possible HTSUS value of 8536.41.0050. The product is rohs3 compliant. The coil voltage of the product is 28vdc. Moreover, it has plug in terminal style. In addition, it is reach unaffected. The product has -70°c ~ 125°c operating temperature range. It holds up to 320 ohms coil resistance. It has a coil current of 87.5 ma. The coil is a non latching type. The product's switching voltage is 208vac, 28vdc - max. On the other hand, 18 vdc is the given crucial/must operating voltage. This is basically a general purpose. It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 15 ms. It has a contact current rating of 10 a. The product is available in socketable configuration. The product br246, is a highly preferred choice for users. While 15 ms is its release time. In addition, box is the available packaging type of the product. Moreover, it corresponds to br246-32, a base product number of the product. The product is designated with the ear99 code number.
