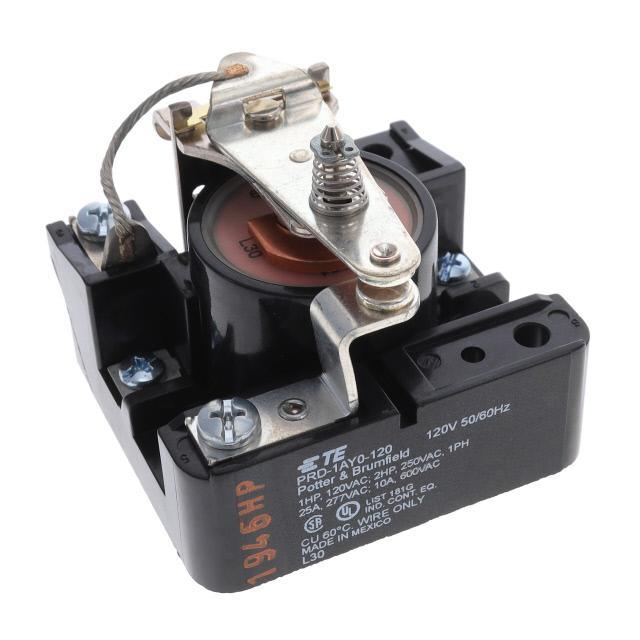

TE Connectivity Potter & Brumfield Relays PRD-1AY0-120

PRD-1AY0-120 TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

HTSUS:
8536.49.0075
RoHS Status:
ROHS3 Compliant
Coil Voltage:
120VAC
Termination Style:
Screw Terminal
REACH Status:
REACH Unaffected
Operating Temperature:
-55°C ~ 45°C
Coil Resistance:
290 Ohms
Coil Current:
85 mA
Coil Type:
Non Latching
Switching Voltage:
277VAC - Nom
Seal Rating:
-
Must Operate Voltage:
102 VAC
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPST-NO (1 Form A)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
40 ms
Must Release Voltage:
12 VAC
Contact Rating (Current):
25 A
Features:
-
Mounting Type:
Chassis Mount
Series:
PRD
Release Time:
20 ms
Coil Insulation:
Class B
Contact Material:
Silver (Ag)
Base Product Number:
PRD-1AY0
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is PRD-1AY0-120. It is assigned with possible HTSUS value of 8536.49.0075. The product is rohs3 compliant. The coil voltage of the product is 120vac. Moreover, it has screw terminal terminal style. In addition, it is reach unaffected. The product has -55°c ~ 45°c operating temperature range. It holds up to 290 ohms coil resistance. It has a coil current of 85 ma. The coil is a non latching type. The product's switching voltage is 277vac - nom. On the other hand, 102 vac is the given crucial/must operating voltage. This is basically a general purpose. It is shipped in bulk package . It also has a spst-no (1 form a) contact form. Its typical moisture sensitivity level is not applicable. The operating time of the product is 40 ms. While the must release voltage is a 12 vac. It has a contact current rating of 25 a. The product is available in chassis mount configuration. The product prd, is a highly preferred choice for users. While 20 ms is its release time. The coil is a class b insulation. The product is made from sturdy silver (ag) materials. Moreover, it corresponds to prd-1ay0, a base product number of the product. The product is designated with the ear99 code number.
