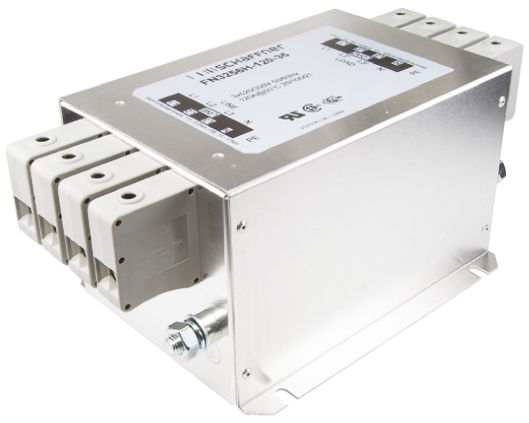

Schaffner FN3256 Series 120A 520 V ac 60Hz Chassis Mount EMI Filter, with Terminal Block Terminals

Enrgtech Part No: ET13956269
|
Manufacturer Part No:
FN3256H-120-35
|
Manufacturer: Schaffner

FN3256H-120-35 Schaffner FN3256 Series 120A 520 V ac 60Hz Chassis Mount EMI Filter, with Terminal Block Terminals

Product Information

Dimensions:

210 x 170 x 125mm

Mounting Type:

Chassis Mount

Series:

FN3256

Maximum Current Rating:

120A

Termination Style:

Terminal Block

Length:

210mm

Height:

125mm

Depth:

170mm

Power Loss:

25W

Leakage Current:

1 mA

Maximum Voltage Rating:

520/300 V ac

Operating Frequency:

60Hz

Checking for live stock

This is FN3256 Series 120A 520 V ac 60Hz Chassis Mount EMI Filter with Terminal Block Terminals manufactured by Schaffner. The manufacturer part number is FN3256H-120-35. The given dimensions of the product include 210 x 170 x 125mm. The product is available in chassis mount configuration. The product fn3256, is a highly preferred choice for users. Additionally, the product has a maximum 120a current rating . Moreover, it has terminal block terminal style. Its accurate length is 210mm. In addition, the height is 125mm. The product comes in 170mm depth. It has a typical 25w power loss ratio . It harbors 1 ma of leakage current. It has a maximum 520/300 v ac voltage rating. Furthermore, the product has 60hz operating frequency range. Whereas it is comprised of 3 phases. It includes single stage stages. It has a maximum operating temperature of +100°c. Whereas, the minimum operating temperature of the product is -25°c. It carries 1500 kω,680kω resistance.

FN 3256 series Datasheet(Technical Reference)

Schaffner EMC/EMI Catalogue(Technical Reference)

PCN Notification - Insulation Tube Colour(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search FN3256H-120-35 on website for other similar products.

We accept all major payment methods for all products including ET13956269. Please check your shopping cart at the time of order.

You can order Schaffner brand products with FN3256H-120-35 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Power Line Filters category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Schaffner FN3256 Series 120A 520 V ac 60Hz Chassis Mount EMI Filter, with Terminal Block Terminals. You can also check on our website or by contacting our customer support team for further order details on Schaffner FN3256 Series 120A 520 V ac 60Hz Chassis Mount EMI Filter, with Terminal Block Terminals.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13956269 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Schaffner" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13956269.

Yes. We ship FN3256H-120-35 Internationally to many countries around the world.
