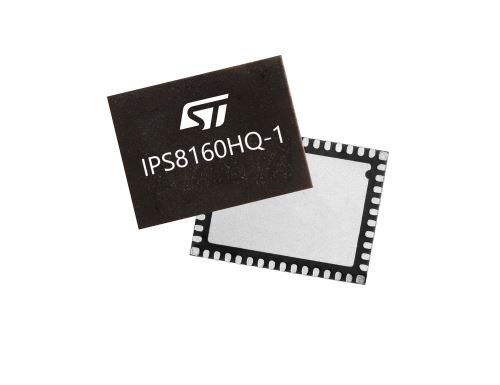

STMicroelectronics IPS8160HQ-1

IPS8160HQ-1 STMicroelectronics
STMicroelectronics

Product Information

Number of Outputs:
8
Power Switch Type:
High Side Driver
Maximum Operating Supply Voltage:
45 V
Maximum Operating Current:
1.7A
Package Type:
QFN48L 8x6 mm
Power Switch Topology:
High Side
Switch On Resistance:
160mΩ
Number of Channels:
8
Pin Count:
48
Voltage - Supply (Vcc/Vdd):
7V ~ 45V
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
48-QFN (8x6)
Operating Temperature:
-40°C ~ 125°C (TJ)
Current - Output (Max):
1A
Input Type:
CMOS
Package / Case:
48-VFQFN Exposed Pad
Ratio - Input:Output:
1:1
REACH Status:
REACH Unaffected
Output Type:
N-Channel
Interface:
On/Off
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
25 Weeks
Features:
Auto Restart, Status Flag
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
7V ~ 45V
Fault Protection:
Current Limiting (Fixed), Over Load, Over Temperature, Reverse Battery, Short Circuit, UVLO
Packaging:
Tape & Reel (TR)
Rds On (Typ):
160mOhm (Max)
Output Configuration:
High Side
ECCN:
EAR99
Number of Outputs:
8
Switch Type:
General Purpose
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is IPS8160HQ-1. Additionally, the product is supplied with 8 outputs. Its power switch is of high side driver type . It has 45 v maximum operating supply voltage. Moreover, the product needs a maximum 1.7a operating current . The package is a sort of qfn48l 8x6 mm. It has a high side power switch topology . In addition, it has about 160mω switch on resistance . It is supplied with 8 channels. It contains 48 pins. The supply voltage of a bespoke product includes 7v ~ 45v. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 48-qfn (8x6) is the supplier device package value. The product has -40°c ~ 125°c (tj) operating temperature range. The maximum product's output current is 1a. It carries cmos input type. Moreover, the product comes in 48-vfqfn exposed pad. The ratio between its input and output is 1:1. In addition, it is reach unaffected. Furthermore, it has an-channel output. A bespoke product is on/off interface. Its typical moisture sensitivity level is 3 (168 hours). It has a long 25 weeks standard lead time. The splendid features of the product include auto restart, status flag. The product is available in surface mount configuration. The given load voltage is 7v ~ 45v. Fault protection features include current limiting (fixed), over load, over temperature, reverse battery, short circuit, uvlo. In addition, tape & reel (tr) is the available packaging type of the product. The typical Rds On of the product is 160mohm (max). It boasts high side output configuration. The product is designated with the ear99 code number. Quality product with a general purpose switch type.

pdf icon
Datasheet - IPS8160HQ-1(Technical Reference)
pdf icon
IPS8160HQ, IPS8160HQ-1(Datasheets)
