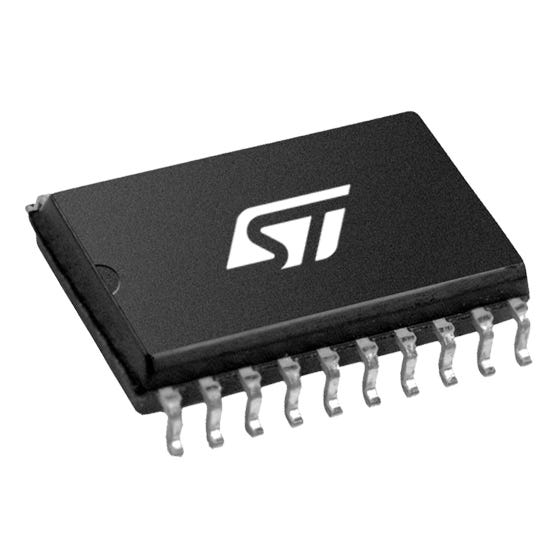

STMicroelectronics VNQ860-E

VNQ860-E STMicroelectronics
VNQ860-E
STMicroelectronics

Product Information

HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
20-SO
Operating Temperature:
-40°C ~ 150°C (TJ)
Current - Output (Max):
250mA
Input Type:
Non-Inverting
Package / Case:
20-SOIC (0.295", 7.50mm Width)
Voltage - Supply (Vcc/Vdd):
Not Required
title:
VNQ860-E
REACH Status:
REACH Unaffected
Output Type:
N-Channel
edacadModel:
VNQ860-E Models
edacadModelUrl:
/en/models/1665446
Ratio - Input:Output:
1:1
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Interface:
On/Off
standardLeadTime:
16 Weeks
Features:
Auto Restart, Status Flag
Mounting Type:
Surface Mount
Series:
VIPower™
Voltage - Load:
5.5V ~ 36V
Fault Protection:
Current Limiting (Fixed), Over Temperature, Over Voltage
Packaging:
Tube
Base Product Number:
VNQ860
Rds On (Typ):
270mOhm (Max)
Output Configuration:
High Side
ECCN:
EAR99
Number of Outputs:
4
Switch Type:
General Purpose
Number of Outputs:
4
Power Switch Type:
High Side
Maximum Operating Supply Voltage:
41 V
Maximum Operating Current:
0.35A
Package Type:
SO20
Power Switch Topology:
High Side
Number of Channels:
4
Pin Count:
20
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is VNQ860-E. Additionally, the product is supplied with 4 outputs. Its power switch is of high side type . It has 41 v maximum operating supply voltage. Moreover, the product needs a maximum 0.35a operating current . The package is a sort of so20. It has a high side power switch topology . It is supplied with 4 channels. It contains 20 pins. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs3 compliant. 20-so is the supplier device package value. The product has -40°c ~ 150°c (tj) operating temperature range. The maximum product's output current is 250ma. It carries non-inverting input type. Moreover, the product comes in 20-soic (0.295", 7.50mm width). The supply voltage of a bespoke product includes not required. In addition, it is reach unaffected. Furthermore, it has an-channel output. The ratio between its input and output is 1:1. Its typical moisture sensitivity level is 3 (168 hours). A bespoke product is on/off interface. It has a long 16 weeks standard lead time. The splendid features of the product include auto restart, status flag. The product is available in surface mount configuration. The product vipower™, is a highly preferred choice for users. The given load voltage is 5.5v ~ 36v. Fault protection features include current limiting (fixed), over temperature, over voltage. In addition, tube is the available packaging type of the product. Moreover, it corresponds to vnq860, a base product number of the product. The typical Rds On of the product is 270mohm (max). It boasts high side output configuration. The product is designated with the ear99 code number. Quality product with a general purpose switch type.

pdf icon
CT6 Line Conversion 21/Oct/2019(PCN Assembly/Origin)
pdf icon
VNQ860-E, VNQ860SP-E Datasheet(Datasheets)
pdf icon
Datasheet - VNQ860-E(Technical Reference)
