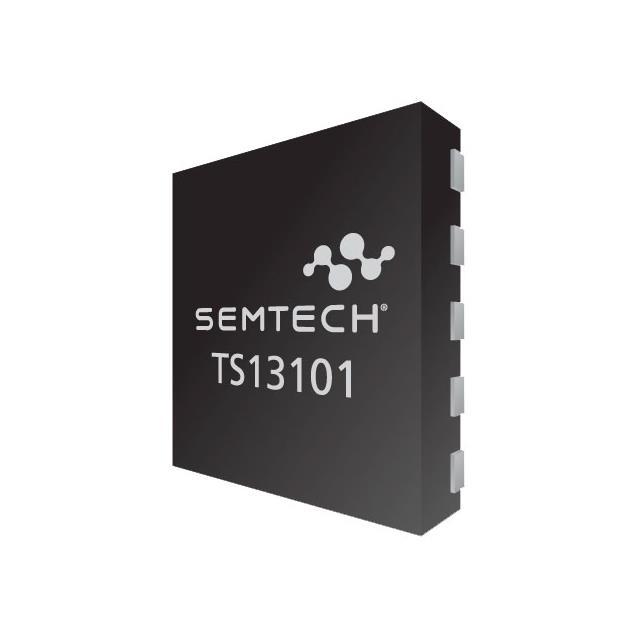

Semtech Corporation TS13101-QFNR

TS13101-QFNR Semtech Corporation
Semtech Corporation

Product Information

Voltage - Supply (Vcc/Vdd):
2.7V ~ 5.5V
HTSUS:
8542.39.0001
RoHS Status:
RoHS Compliant
Supplier Device Package:
20-QFN (4x4)
Operating Temperature:
-40°C ~ 125°C (TJ)
Current - Output (Max):
4A
Input Type:
-
Package / Case:
20-VFQFN Exposed Pad
Ratio - Input:Output:
1:1
Output Type:
-
Interface:
Clock
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
60V (Max)
Fault Protection:
Current Limiting
Base Product Number:
TS13101
Rds On (Typ):
110mOhm
Output Configuration:
-
ECCN:
EAR99
Number of Outputs:
1
Switch Type:
AC Switch
Checking for live stock

This is manufactured by Semtech Corporation. The manufacturer part number is TS13101-QFNR. The supply voltage of a bespoke product includes 2.7v ~ 5.5v. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs compliant. 20-qfn (4x4) is the supplier device package value. The product has -40°c ~ 125°c (tj) operating temperature range. The maximum product's output current is 4a. Moreover, the product comes in 20-vfqfn exposed pad. The ratio between its input and output is 1:1. A bespoke product is clock interface. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The given load voltage is 60v (max). Fault protection features include current limiting. Moreover, it corresponds to ts13101, a base product number of the product. The typical Rds On of the product is 110mohm. The product is designated with the ear99 code number. Additionally, the product is supplied with 1 outputs. Quality product with a ac switch switch type.

pdf icon
Assembly Transfer 19/Jan/2022(PCN Assembly/Origin)
pdf icon
Label Changes 28/Jun/2019(PCN Packaging)
