Diodes Incorporated AP2805AMMTR-G1

AP2805AMMTR-G1 Diodes Incorporated
AP2805AMMTR-G1
Diodes Incorporated

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
8-MSOP
Ratio - Input:Output:
1:1
Operating Temperature:
-40°C ~ 85°C (TA)
Current - Output (Max):
500mA
Input Type:
Non-Inverting

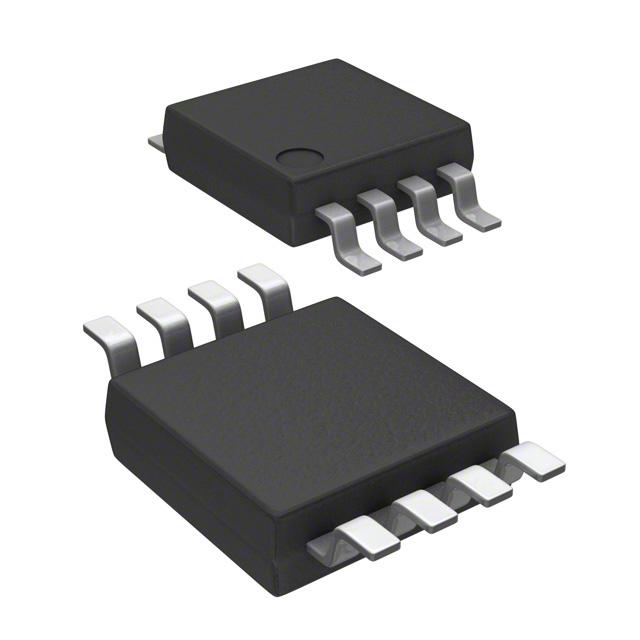

Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Voltage - Supply (Vcc/Vdd):
Not Required
REACH Status:
REACH Unaffected
Output Type:
N-Channel
edacadModel:
AP2805AMMTR-G1 Models
edacadModelUrl:
/en/models/4470828
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Interface:
On/Off
Features:
Load Discharge, Status Flag
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
2.7V ~ 5.5V
Fault Protection:
Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Base Product Number:
AP2805
Rds On (Typ):
60mOhm
Output Configuration:
High Side
ECCN:
EAR99
Number of Outputs:
1
Switch Type:
USB Switch
Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is AP2805AMMTR-G1. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. 8-msop is the supplier device package value. The ratio between its input and output is 1:1. The product has -40°c ~ 85°c (ta) operating temperature range. The maximum product's output current is 500ma. It carries non-inverting input type. Moreover, the product comes in 8-tssop, 8-msop (0.118", 3.00mm width). The supply voltage of a bespoke product includes not required. In addition, it is reach unaffected. Furthermore, it has an-channel output. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). A bespoke product is on/off interface. The splendid features of the product include load discharge, status flag. The product is available in surface mount configuration. The given load voltage is 2.7v ~ 5.5v. Fault protection features include current limiting (fixed), over temperature, reverse current, uvlo. Moreover, it corresponds to ap2805, a base product number of the product. The typical Rds On of the product is 60mohm. It boasts high side output configuration. The product is designated with the ear99 code number. Additionally, the product is supplied with 1 outputs. Quality product with a usb switch switch type.

pdf icon
OBS 04/Aug/2016(PCN Obsolescence/ EOL)
pdf icon
AP2805(Datasheets)
pdf icon
AP2805 Series(Datasheets)
pdf icon
Diodes Environmental Compliance Cert(Environmental Information)
