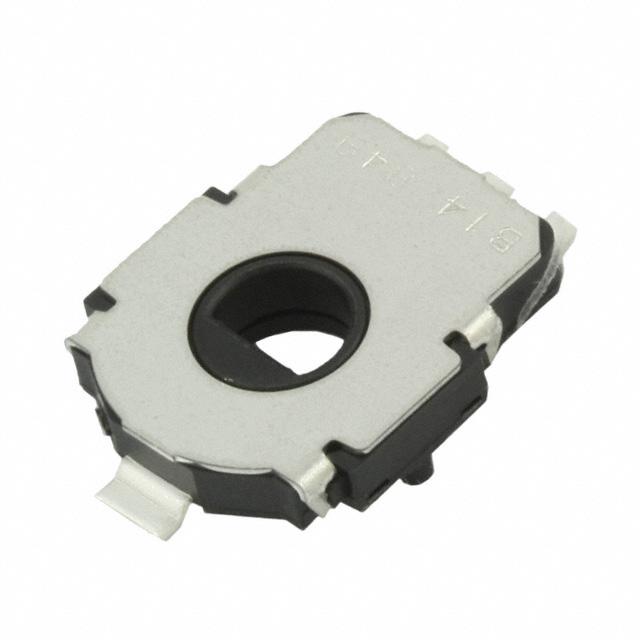

Panasonic Electronic Components EVW-ADF001B14

EVW-ADF001B14 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

HTSUS:
8533.40.8070
RoHS Status:
ROHS3 Compliant
Output Signal:
-
Termination Style:
SMD (SMT) Tab
Supplier Device Package:
-
Operating Temperature:
-
Package / Case:
4-SMD, Gull Wing
Rotation Angle - Electrical, Mechanical:
0° ~ 343°
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Output:
Resistive
standardLeadTime:
11 Weeks
Linear Range:
-
For Measuring:
Rotary Position
Mounting Type:
Surface Mount
Series:
-
Linearity:
±2%
Resistance:
10 kOhms
Voltage - Supply:
-
Resistance Tolerance:
±30%
Actuator Type:
Hole for Shaft
Technology:
Resistive
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVW-ADF001B14. It is assigned with possible HTSUS value of 8533.40.8070. The product is rohs3 compliant. Moreover, it has smd (smt) tab terminal style. Moreover, the product comes in 4-smd, gull wing. The rotation angle - electrical and mechanical includes - 0° ~ 343°. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). Moreover, the product allow the output of resistive. It has a long 11 weeks standard lead time. It is ideal for measuring rotary position. The product is available in surface mount configuration. A product has a linearity of ±2%. It carries 10 kohms resistance. It has the ability to tolerate resistance of ±30%. The product carries hole for shaft actuator. This product use resistive technology. The product is designated with the ear99 code number.

pdf icon
EVWAE, EVWAD Series(Datasheets)
pdf icon
Multiple Devices Reel Change 10/May/2017(PCN Packaging)
pdf icon
Mult Devs Label 22/Nov/2022(PCN Packaging)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search EVW-ADF001B14 on website for other similar products.
We accept all major payment methods for all products including ET12192151. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with EVW-ADF001B14 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Position Sensors - Angle, Linear Position Measuring category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components EVW-ADF001B14. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components EVW-ADF001B14.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12192151 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12192151.
Yes. We ship EVW-ADF001B14 Internationally to many countries around the world.
