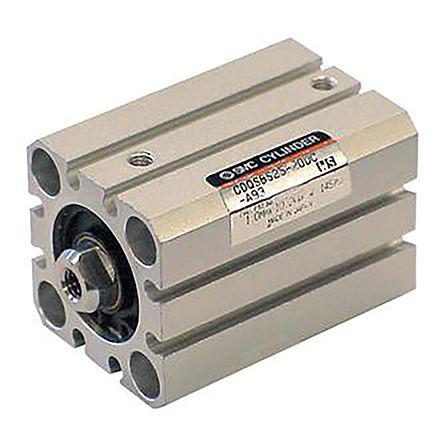

SMC Double Action Pneumatic Compact Cylinder 16mm Bore, 100mm stroke

CDQSB16-100DC-X691 SMC Double Action Pneumatic Compact Cylinder 16mm Bore, 100mm stroke
SMC

Product Information

Port Connection:
M4 x 0.7
Cushioning Type:
Rubber
Dimensions:
125.5 x 29 x 29mm
Weight:
231g
Force at 7 bar:
106 (IN) N, 141 (OUT) N
Stroke:
100mm
Height:
29mm
Width:
29mm
Length:
125.5mm
Maximum Operating Pressure:
1 MPa
Minimum Operating Temperature:
-10°C
Action:
Double
Bore:
16mm
Absolute Maximum Pressure:
1.5MPa
Maximum Operating Temperature:
+60°C
Rods:
Single
Checking for live stock

This is Double Action Pneumatic Compact Cylinder 16mm Bore 100mm stroke manufactured by SMC. The manufacturer part number is CDQSB16-100DC-X691. Provides m4 x 0.7 of port connection. While the product has supplied with rubber cushioning. The given dimensions of the product include 125.5 x 29 x 29mm. The typical product's weight is 231g. It exhibits about 106 (in) n, 141 (out) n force at 7 bar . The stroke is 100mm. In addition, the height is 29mm. Furthermore, the product is 29mm wide. Its accurate length is 125.5mm. It features 1 mpa maximum operating pressure. Whereas, the minimum operating temperature of the product is -10°c. Concerning its action options, it allows double action. The bore with 16mm of dimensions. Moreover, it has an absolute maximum 1.5mpa pressure . It has a maximum operating temperature of +60°c. Additionally, it has a single rod .

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search CDQSB16-100DC-X691 on website for other similar products.
We accept all major payment methods for all products including ET13963142. Please check your shopping cart at the time of order.
You can order SMC brand products with CDQSB16-100DC-X691 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Pneumatic Compact Cylinders category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SMC Double Action Pneumatic Compact Cylinder 16mm Bore, 100mm stroke. You can also check on our website or by contacting our customer support team for further order details on SMC Double Action Pneumatic Compact Cylinder 16mm Bore, 100mm stroke.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13963142 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "SMC" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13963142.
Yes. We ship CDQSB16-100DC-X691 Internationally to many countries around the world.
