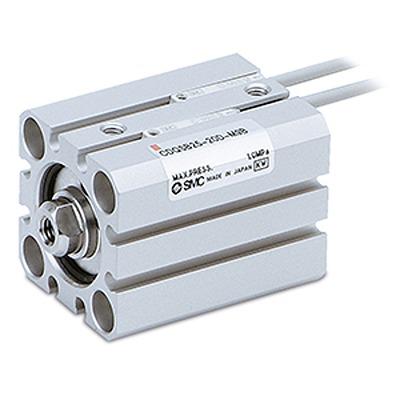

SMC Double Action Pneumatic Compact Cylinder 20mm Bore, 35mm stroke

CDQSB20-35D SMC Double Action Pneumatic Compact Cylinder 20mm Bore, 35mm stroke
SMC

Product Information

Port Connection:
M5
Maximum Operating Pressure:
1 MPa
Dimensions:
59 x 36 x 36mm
Weight:
140g
CAD Drawing:
3D CAD Model
Stroke:
35mm
Height:
36mm
Width:
36mm
Length:
59mm
Manufacturer Series:
CQS
Minimum Operating Temperature:
-10°C
Action:
Double
Bore:
20mm
Absolute Maximum Pressure:
1.5MPa
Maximum Operating Temperature:
+70°C
Rods:
Single
Checking for live stock

This is Double Action Pneumatic Compact Cylinder 20mm Bore 35mm stroke manufactured by SMC. The manufacturer part number is CDQSB20-35D. Provides m5 of port connection. It features 1 mpa maximum operating pressure. The given dimensions of the product include 59 x 36 x 36mm. The typical product's weight is 140g. It has 3d cad model CAD drawing . The stroke is 35mm. In addition, the height is 36mm. Furthermore, the product is 36mm wide. Its accurate length is 59mm. The product has a cqs manufacturer series. Whereas, the minimum operating temperature of the product is -10°c. Concerning its action options, it allows double action. The bore with 20mm of dimensions. Moreover, it has an absolute maximum 1.5mpa pressure . It has a maximum operating temperature of +70°c. Additionally, it has a single rod .

pdf icon
Series CQS Compact Cylinder Data Sheet(Technical Reference)
