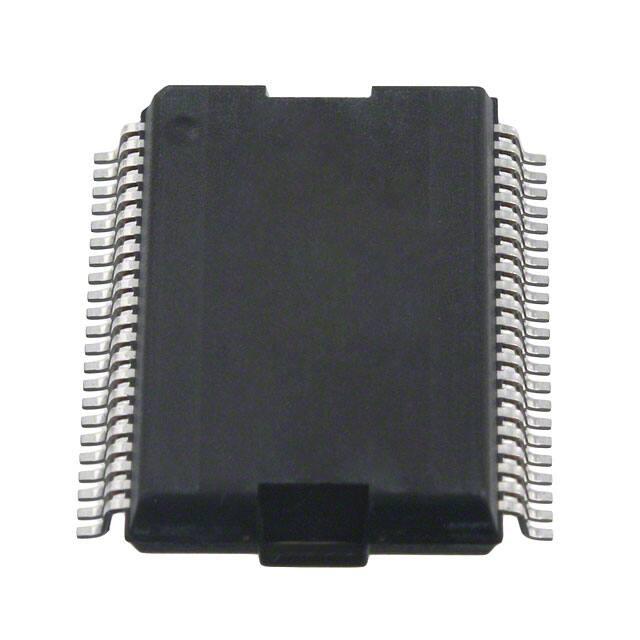

Apex Microtechnology SA306AHR

SA306AHR Apex Microtechnology
Apex Microtechnology

Product Information

HTSUS:
8542.33.0001
RoHS Status:
RoHS Compliant
Current - Output / Channel:
8A
Supplier Device Package:
44-HSOP
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Applications:
DC Motors, General Purpose, Solenoids
Interface:
PWM
Package:
Bulk
Load Type:
Inductive
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Features:
-
Mounting Type:
Surface Mount
Series:
Apex Precision Power®
Voltage - Load:
9V ~ 60V
Fault Protection:
Current Limiting, Over Temperature, Shoot-Through, UVLO
Voltage - Supply:
4.5V ~ 5.5V
Current - Peak Output:
17A
Rds On (Typ):
250mOhm LS, 300mOhm HS
Output Configuration:
Half Bridge (3)
Technology:
DMOS
Base Product Number:
SA306
ECCN:
EAR99
Checking for live stock

This is manufactured by Apex Microtechnology. The manufacturer part number is SA306AHR. It is assigned with possible HTSUS value of 8542.33.0001. The product is rohs compliant. It carries 8a output or channel current. 44-hsop is the supplier device package value. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 44-bssop (0.433", 11.00mm width) exposed pad. The product is widely employed in dc motors, general purpose, solenoids. A bespoke product is pwm interface. It is shipped in bulk package . Load Type Specs- inductive. Its typical moisture sensitivity level is 3 (168 hours). The product is available in surface mount configuration. The product apex precision power®, is a highly preferred choice for users. The given load voltage is 9v ~ 60v. Fault protection features include current limiting, over temperature, shoot-through, uvlo. It has optimum voltage supply of 4.5v ~ 5.5v. It carries 17a peak current output. The typical Rds On of the product is 250mohm ls, 300mohm hs. It boasts half bridge (3) output configuration. This product use dmos technology. Moreover, it corresponds to sa306, a base product number of the product. The product is designated with the ear99 code number.
