Rohm Semiconductor BD6225FP-E2

BD6225FP-E2 Rohm Semiconductor
Rohm Semiconductor

Product Information

HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
500mA
Supplier Device Package:
25-HSOP
Operating Temperature:
-40°C ~ 85°C (TA)

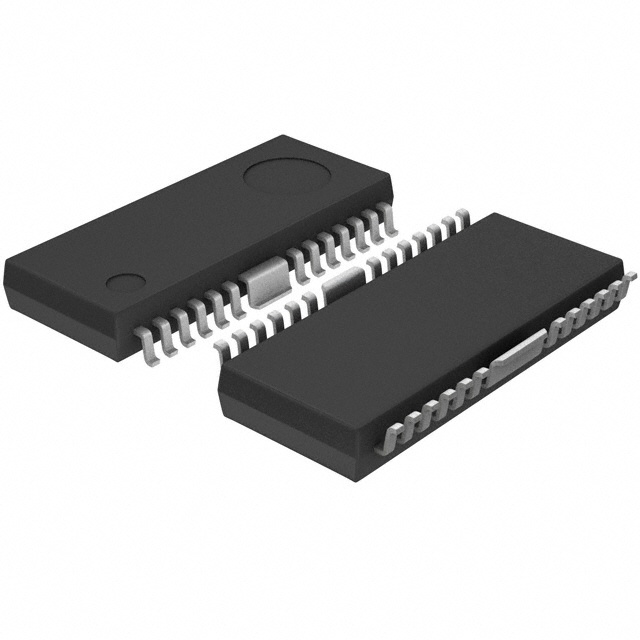

Package / Case:
25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs
title:
BD6225FP-E2
REACH Status:
REACH Unaffected
edacadModel:
BD6225FP-E2 Models
Applications:
DC Motors, General Purpose
edacadModelUrl:
/en/models/1981396
Manufacturer:
Rohm Semiconductor
Load Type:
Inductive
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Interface:
Logic
standardLeadTime:
14 Weeks
Features:
-
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
6V ~ 15V
Fault Protection:
Current Limiting, Over Temperature, Over Voltage, UVLO
Packaging:
Tape & Reel (TR)
Voltage - Supply:
6V ~ 15V
Current - Peak Output:
-
Rds On (Typ):
1.5Ohm
Output Configuration:
Half Bridge (4)
Technology:
Power MOSFET
Base Product Number:
BD6225
ECCN:
EAR99
Checking for live stock

This is manufactured by Rohm Semiconductor. The manufacturer part number is BD6225FP-E2. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs3 compliant. It carries 500ma output or channel current. 25-hsop is the supplier device package value. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 25-sop (0.213", 5.40mm width) + 2 heat tabs. In addition, it is reach unaffected. The product is widely employed in dc motors, general purpose. The rohm semiconductor's product offers user-desired applications. Load Type Specs- inductive. Its typical moisture sensitivity level is 1 (unlimited). A bespoke product is logic interface. It has a long 14 weeks standard lead time. The product is available in surface mount configuration. The given load voltage is 6v ~ 15v. Fault protection features include current limiting, over temperature, over voltage, uvlo. In addition, tape & reel (tr) is the available packaging type of the product. It has optimum voltage supply of 6v ~ 15v. The typical Rds On of the product is 1.5ohm. It boasts half bridge (4) output configuration. This product use power mosfet technology. Moreover, it corresponds to bd6225, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
BD6225FP-E2 Whisker Info(Environmental Information)
pdf icon
HSOP25 Taping Spec(Datasheets)
pdf icon
BD6225FP-E2 Flammability(Other Related Documents)
