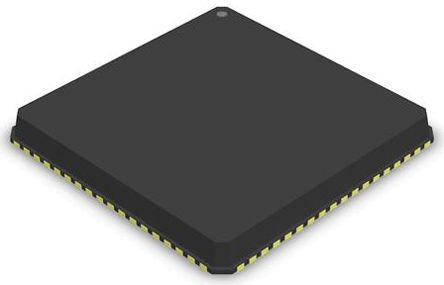

Analog Devices AD9528BCPZ, Dual Frequency Synthesizer, Maximum of 1.25 GHz, 72-Pin LFCSP

AD9528BCPZ Analog Devices , Dual Frequency Synthesizer, Maximum of 1.25 GHz, 72-Pin LFCSP
Analog Devices

Product Information

Dimensions:
10.1 x 10.1 x 0.95mm
Mounting Type:
Surface Mount
Maximum Output Frequency:
1.25GHz
Minimum Operating Supply Voltage:
3.135 V
Maximum Supply Current:
71 mA
Height:
0.95mm
Width:
10.1mm
Length:
10.1mm
Maximum Input Frequency:
400MHz
Package Type:
LFCSP
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.465 V
Maximum Operating Temperature:
+85 °C
Pin Count:
72
RoHs Compliant
Checking for live stock

This is Dual Frequency Synthesizer Maximum of 1.25 GHz 72-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is AD9528BCPZ. The given dimensions of the product include 10.1 x 10.1 x 0.95mm. The product is available in surface mount configuration. Additionally, it has a maximum 1.25ghz output frequency . While its minimum operating supply voltage is 3.135 v. Moreover, it has a maximum 71 ma supply current . In addition, the height is 0.95mm. Furthermore, the product is 10.1mm wide. Its accurate length is 10.1mm. The product has a maximum 400mhz input frequency . The package is a sort of lfcsp. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.465 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 72 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD9528BCPZ on website for other similar products.
We accept all major payment methods for all products including ET13856995. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD9528BCPZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PLL Frequency Synthesizers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD9528BCPZ, Dual Frequency Synthesizer, Maximum of 1.25 GHz, 72-Pin LFCSP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD9528BCPZ, Dual Frequency Synthesizer, Maximum of 1.25 GHz, 72-Pin LFCSP.
