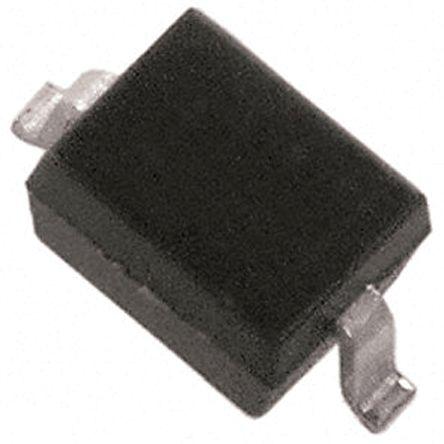

Infineon BA592E6433HTMA1 PIN Diode, 100mA, 35V, 3-Pin SOD-323

BA592E6433HTMA1 Infineon  PIN Diode, 100mA, 35V, 3-Pin SOD-323
Infineon

Product Information

Maximum Forward Voltage:
1V
Maximum Diode Capacitance:
1.4pF
Dimensions:
1.7 x 1.25 x 0.85mm
Mounting Type:
Surface Mount
Application:
TV, VTR Tuners
Typical Carrier Life Time:
120ns
Maximum Forward Current:
100mA
Maximum Series Resistance @ Maximum IF:
0.5 Ω@ 10 mA
Height:
0.85mm
Width:
1.25mm
Length:
1.7mm
Package Type:
SOD-323
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Voltage:
35V
Maximum Operating Temperature:
+125 °C
Diode Configuration:
Single
Pin Count:
3
RoHs Compliant
Checking for live stock

This is PIN Diode 100mA 35V 3-Pin SOD-323 manufactured by Infineon. The manufacturer part number is BA592E6433HTMA1. It also carries 1v of maximum forward voltage. It has a maximum 1.4pf diode capacitance . The given dimensions of the product include 1.7 x 1.25 x 0.85mm. The product is available in surface mount configuration. Applications Information involves tv, vtr tuners. It has a standard 120ns typical carrier life time . Moreover, the product has a maximum 100ma forward current . It has a maximum 0.5 ω@ 10 ma series resistance @ maximum IF . In addition, the height is 0.85mm. Furthermore, the product is 1.25mm wide. Its accurate length is 1.7mm. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, the product has a maximum 35v reverse voltage . It has a maximum operating temperature of +125 °c. The diode features a single configuration. It contains 3 pins.

pdf icon
BA592/BA892 series RF Switching Diodes(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
