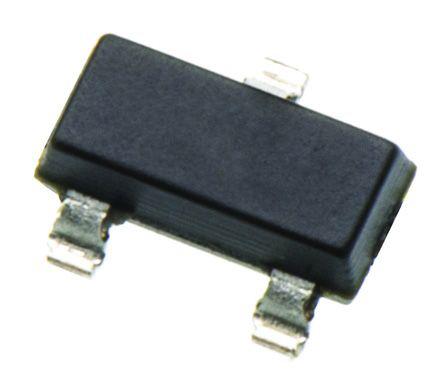

Broadcom HSMP-381E-BLKG Dual Common Anode PIN Diode, 100V, 3-Pin SOT-323 (SC-70)

HSMP-381E-BLKG Broadcom Dual Common Anode PIN Diode, 100V, 3-Pin SOT-323 (SC-70)
HSMP-381E-BLKG
HSMP-381E-BLKG
ET14154135
ET14154135
PIN Diodes
PIN Diodes
Broadcom

Product Information

Maximum Diode Capacitance:
0.35pF
Dimensions:
2.25 x 1.4 x 1mm
Mounting Type:
Surface Mount
Application:
Attenuator
Typical Carrier Life Time:
1.5µs
Maximum Reverse Voltage:
100V
Maximum Series Resistance @ Maximum IF:
3 Ω@ 100 mA
Height:
1mm
Width:
1.4mm
Length:
2.25mm
Package Type:
SOT-323 (SC-70)
Number of Elements per Chip:
2
Minimum Operating Temperature:
-65 °C
Maximum Operating Temperature:
+150 °C
Diode Configuration:
Common Anode
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Dual Common Anode PIN Diode 100V 3-Pin SOT-323 (SC-70) manufactured by Broadcom. The manufacturer part number is HSMP-381E-BLKG. It has a maximum 0.35pf diode capacitance . The given dimensions of the product include 2.25 x 1.4 x 1mm. The product is available in surface mount configuration. Applications Information involves attenuator. It has a standard 1.5µs typical carrier life time . Moreover, the product has a maximum 100v reverse voltage . It has a maximum 3 ω@ 100 ma series resistance @ maximum IF . In addition, the height is 1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 2.25mm. The package is a sort of sot-323 (sc-70). It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It has a maximum operating temperature of +150 °c. The diode features a common anode configuration. It contains 3 pins.

pdf icon
HSMP-381x, 481x Surface Mount RF PIN Low Distortion Attenuator Diodes Data Sheet(Technical Reference)
