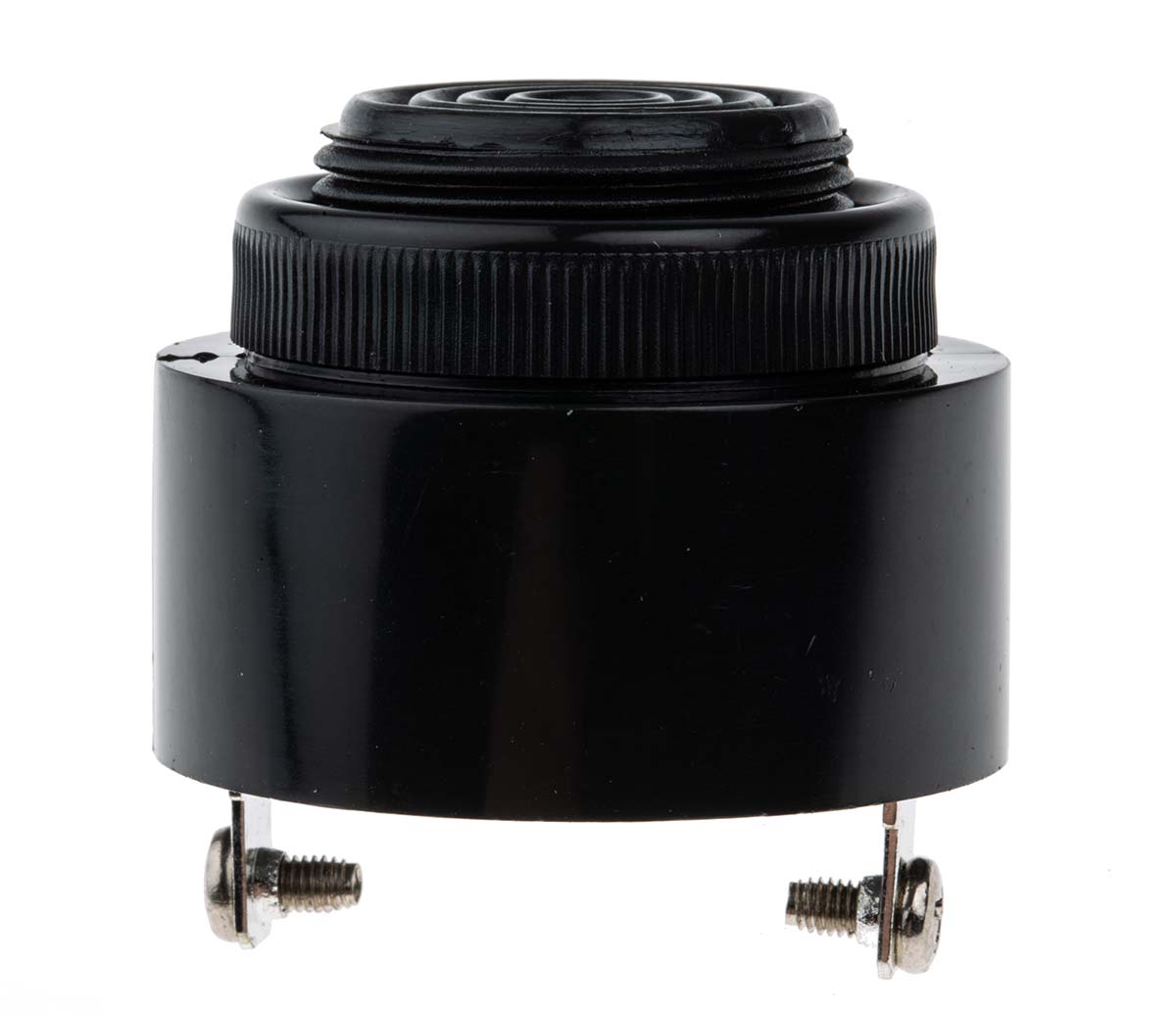

RS Pro 98dB Panel Mount Continuous Internal Buzzer, 2300 → 3300 Hz

535-8483 RS Pro 98dB Panel Mount Continuous Internal Buzzer, 2300 → 3300 Hz
535-8483
535-8483
ET16739531
RS Pro

Product Information

Minimum Supply Voltage:
4V dc
Diameter:
42.5mm
Dimensions:
42.5 (Dia.) x 33mm
Mounting Type:
Panel Mount
Minimum Frequency:
2300Hz
Supply Current:
2 mA, 22mA
Drive Type:
Internal
Height:
33mm
Tone Type:
Continuous
Maximum Frequency:
3.3kHz
Minimum Operating Temperature:
-30°C
Maximum Supply Voltage:
28V dc
Sound Level:
98dB
Maximum Operating Temperature:
+85°C
Checking for live stock

This is 98dB Panel Mount Continuous Internal Buzzer 2300 → 3300 Hz manufactured by RS Pro. The manufacturer part number is 535-8483. It has a minimum 4v dc supply voltage . Its diameter is 42.5mm. The given dimensions of the product include 42.5 (dia.) x 33mm. The product is available in panel mount configuration. It has a minimum 2300hz frequency . It features 2 ma, 22ma supply current. The product features a internal drive. In addition, the height is 33mm. It has a/an continuous type tone . It features 3.3khz of maximum frequency. Whereas, the minimum operating temperature of the product is -30°c. The product requires a maximum 28v dc supply voltage . Its sound level is about 98db . It has a maximum operating temperature of +85°c.

pdf icon
RS PRO Datasheet(Technical Reference)
pdf icon
NOTICE – This product is not for general use by consumers(Technical Reference)
pdf icon
RS Pro Continuous Tone Buzzer Datasheet(Technical Reference)
