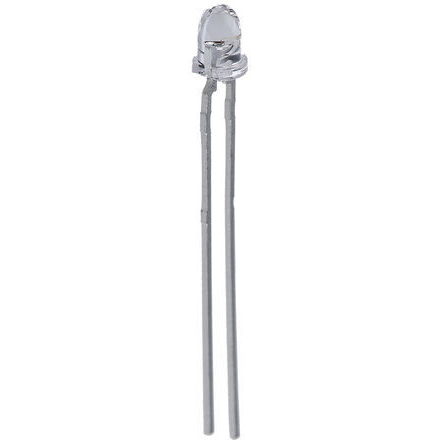

SFH 309-4/5 ams OSRAM, 24 ° Full Spectrum Phototransistor, Through Hole 2-Pin T-1 package

SFH-309-4-5 SFH 309-4/5 ams OSRAM, 24 ° Full Spectrum Phototransistor, Through Hole 2-Pin T-1 package
ams OSRAM

Product Information

Polarity:
NPN
Dimensions:
4 x 4 x 5.2mm
Mounting Type:
Through Hole
Collector Current:
15mA
Typical Rise Time:
7µs
Maximum Light Current:
7200µA
Maximum Wavelength Detected:
1150nm
Height:
5.2mm
Minimum Wavelength Detected:
380nm
Width:
4mm
Length:
4mm
Package Type:
T-1
Number of Channels:
1
Maximum Dark Current:
200nA
Number of Pins:
2
Spectral Range of Sensitivity:
380 → 1150 nm
Angle of Half Sensitivity:
24 °
Spectrums Detected:
Infrared, Ultraviolet, Visible Light
Typical Fall Time:
7µs
RoHs Compliant
Checking for live stock

This is 24 ° Full Spectrum Phototransistor Through Hole 2-Pin T-1 package manufactured by ams OSRAM. The manufacturer part number is SFH 309-4/5. While providing npn polarity. The given dimensions of the product include 4 x 4 x 5.2mm. The product is available in through hole configuration. Additionally, it has about 15ma collector current . It has a typical 7µs rise time . It has a maximum 7200µa light current . In addition, it has a maximum 1150nm detected wavelength . In addition, the height is 5.2mm. Moreover, it has a minimum 380nm detected wavelength . Furthermore, the product is 4mm wide. Its accurate length is 4mm. The package is a sort of t-1. It is supplied with 1 channels. The product has maximum 200na dark current . It is comprised of 2 pins. It has about 380 → 1150 nm spectral range of sensitivity . It has 24 ° angle of half sensitivity . Moreover, it detects infrared, ultraviolet, visible light spectrums . It has a typical 7µs fall time .
