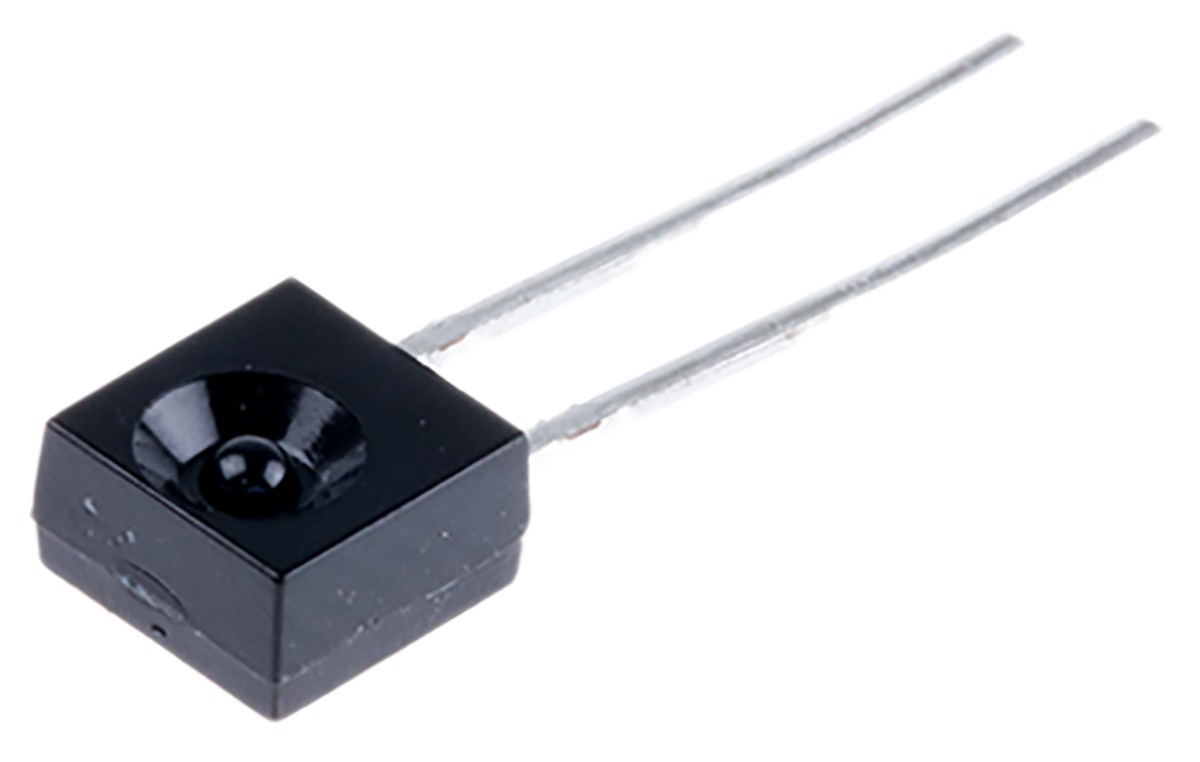

Vishay TEKT5400S-ASZ 74 ° IR Phototransistor, Through Hole 2-Pin Side Looker package

TEKT5400S-ASZ Vishay 74 ° IR Phototransistor, Through Hole 2-Pin Side Looker package
Vishay

Product Information

Polarity:
NPN
Dimensions:
5 x 2.65 x 5mm
Mounting Type:
Through Hole
Collector Current:
100mA
Typical Rise Time:
6µs
Maximum Light Current:
4000µA
Maximum Wavelength Detected:
980nm
Height:
5mm
Minimum Wavelength Detected:
850nm
Width:
2.65mm
Length:
5mm
Package Type:
Side Looker
Number of Channels:
1
Maximum Dark Current:
100nA
Number of Pins:
2
Spectral Range of Sensitivity:
850 → 980 nm
Angle of Half Sensitivity:
74 °
Spectrums Detected:
Infrared
Typical Fall Time:
5µs
RoHs Compliant
Checking for live stock

This is 74 ° IR Phototransistor Through Hole 2-Pin Side Looker package manufactured by Vishay. The manufacturer part number is TEKT5400S-ASZ. While providing npn polarity. The given dimensions of the product include 5 x 2.65 x 5mm. The product is available in through hole configuration. Additionally, it has about 100ma collector current . It has a typical 6µs rise time . It has a maximum 4000µa light current . In addition, it has a maximum 980nm detected wavelength . In addition, the height is 5mm. Moreover, it has a minimum 850nm detected wavelength . Furthermore, the product is 2.65mm wide. Its accurate length is 5mm. The package is a sort of side looker. It is supplied with 1 channels. The product has maximum 100na dark current . It is comprised of 2 pins. It has about 850 → 980 nm spectral range of sensitivity . It has 74 ° angle of half sensitivity . Moreover, it detects infrared spectrums . It has a typical 5µs fall time .

pdf icon
Assembly Instructions(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Reliability(Technical Reference)
pdf icon
Component Construction(Technical Reference)
pdf icon
Physics(Technical Reference)
pdf icon
Measurement Instructions(Technical Reference)
