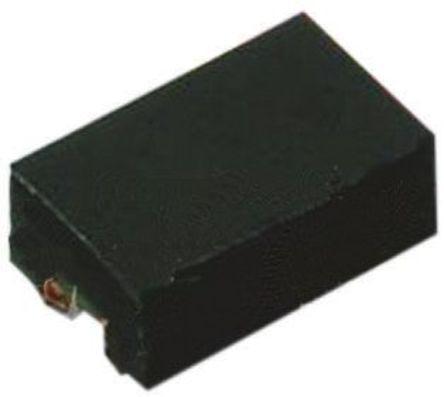

Vishay TEMT7000X01 120 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin

TEMT7000X01 Vishay 120 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin
Vishay

Product Information

Polarity:
NPN
Dimensions:
2 x 1.25 x 0.85mm
Mounting Type:
Surface Mount
Collector Current:
20mA
Maximum Light Current:
675µA
Maximum Wavelength Detected:
1090nm
Height:
0.85mm
Minimum Wavelength Detected:
470nm
Width:
1.25mm
Length:
2mm
Number of Pins:
2
Number of Channels:
1
Spectral Range of Sensitivity:
470 → 1090 nm
Angle of Half Sensitivity:
120 °
Spectrums Detected:
Infrared, Visible Light
Maximum Dark Current:
100nA
RoHs Compliant
Checking for live stock

This is 120 ° IR + Visible Light Phototransistor Surface Mount 2-Pin manufactured by Vishay. The manufacturer part number is TEMT7000X01. While providing npn polarity. The given dimensions of the product include 2 x 1.25 x 0.85mm. The product is available in surface mount configuration. Additionally, it has about 20ma collector current . It has a maximum 675µa light current . In addition, it has a maximum 1090nm detected wavelength . In addition, the height is 0.85mm. Moreover, it has a minimum 470nm detected wavelength . Furthermore, the product is 1.25mm wide. Its accurate length is 2mm. It is comprised of 2 pins. It is supplied with 1 channels. It has about 470 → 1090 nm spectral range of sensitivity . It has 120 ° angle of half sensitivity . Moreover, it detects infrared, visible light spectrums . The product has maximum 100na dark current .
