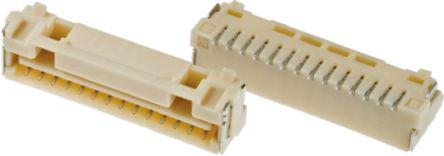

Molex CLIK-MATE Series 1.25mm Pitch 14 Way 1 Row Straight PCB Socket, Surface Mount, Solder Termination

502382-1470 Molex CLIK-MATE Series 1.25mm Pitch 14 Way 1 Row Straight PCB Socket, Surface Mount, Solder Termination
Molex

Product Information

Number of Contacts:
14
Current Rating:
1A
Mounting Type:
Surface Mount
Voltage Rating:
50 V ac/dc
Series:
CLIK-Mate
Body Orientation:
Straight
Termination Method:
Solder
Number of Rows:
1
Pitch:
1.25mm
Contact Material:
Copper Alloy
Type:
Wire to Board
CAD Drawing:
3D CAD Model
Series Number:
502382
RoHs Compliant
Checking for live stock

This is CLIK-MATE Series 1.25mm Pitch 14 Way 1 Row Straight PCB Socket Surface Mount Solder Termination manufactured by Molex. The manufacturer part number is 502382-1470. The product contains 14 contacts. The product has a current rating of 1a. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v ac/dc voltage rating. The product clik-mate, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It comes in 1 of rows. Moreover, the product is 1.25mm. The product is made from sturdy copper alloy materials. It comes in wire to board configuration. It has 3d cad model CAD drawing . It carries [Serial Number] serial number.

pdf icon
1.25 W/B Conn Single S/T Rec Assy 8-15 Ckt Drawing(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
Datasheet(Technical Reference)
