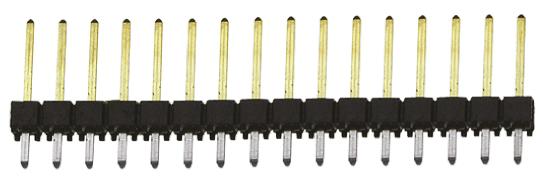

Samtec TSW, 2.54mm Pitch, 16 Way, 1 Row, Straight Pin Header, Through Hole

TSW-116-14-L-S Samtec TSW, 2.54mm Pitch, 16 Way, 1 Row, Straight Pin Header, Through Hole
Samtec

Product Information

Shrouded/Unshrouded:
Unshrouded
Tail Pin Length:
2.79mm
Current Rating:
7.6A
Mounting Type:
Through Hole
Voltage Rating:
550.0 V
Series:
TSW
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Board to Board, Wire to Board
Number of Rows:
1
Contact Plating:
Gold
Pitch:
2.54mm
Mating Pin Length:
8.13mm
Number of Contacts:
16
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is TSW 2.54mm Pitch 16 Way 1 Row Straight Pin Header Through Hole manufactured by Samtec. The manufacturer part number is TSW-116-14-L-S. It is supplied as unshrouded. Moreover, it has a standard 2.79mm pin tail length . The product has a current rating of 7.6a. The product is available in through hole configuration. Moreover, the product has a nominal 550.0 v voltage rating. The product tsw, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows board to board, wire to board connector system. It comes in 1 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 2.54mm. It has about 8.13mm mating pin in length . The product contains 16 contacts. The product is made from sturdy phosphor bronze materials.
